RF Coaxial Adapters · N

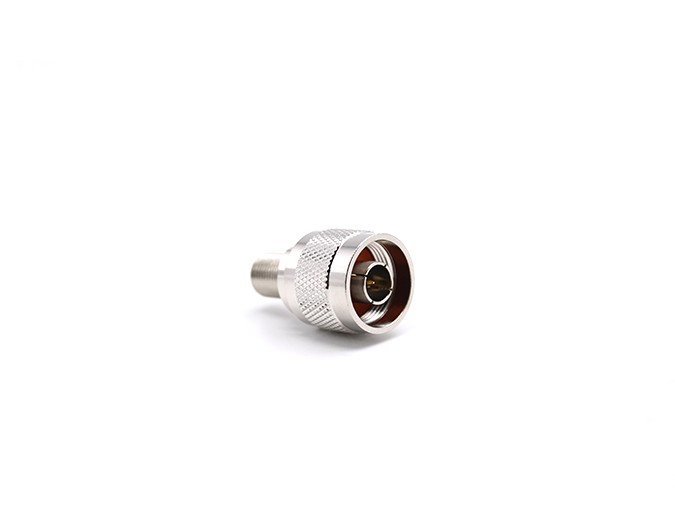

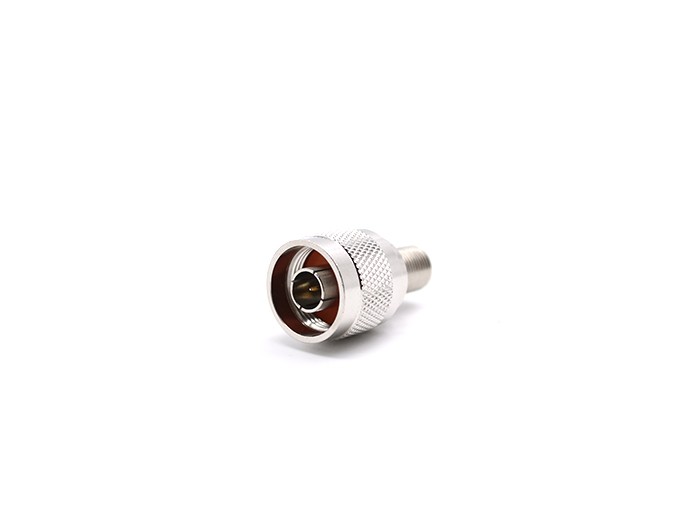

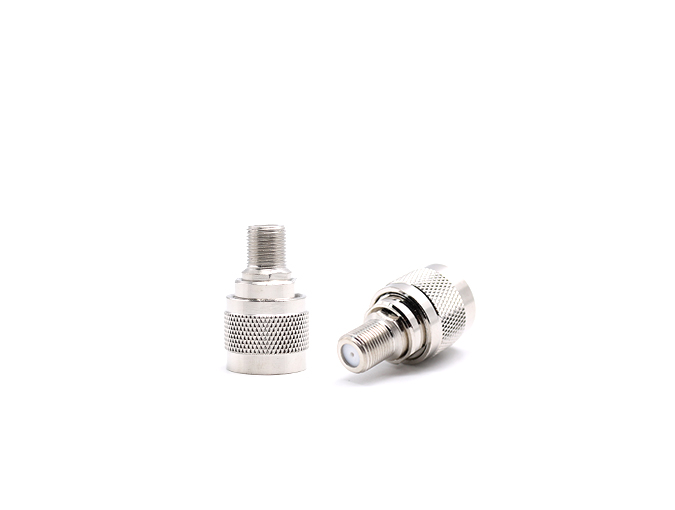

N Male to F Female Adapters
Model: N/F-JK
Product Introduction
Our type N to F adapter is a between series coaxial adapter design. This 50 Ohm type N adapter is precision manufactured to RF components industry specifications.
Detailed Information
N Male to F Female Adapters
Teruilai P/N: N/F-JK Datasheet
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedance | 50Ω | |
| Frequency range | DC-2GHZ | |
| VSWR | 1.30:1 | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -55℃ - 165℃ | |
| Durability | >500 | |
| RoHs Compliant | Yes | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Pin Contact | Bronze | Gold |
| Body | Brass | Nickel plated |
| Insulator | Teflon | |
