RF Coaxial Adapters · N

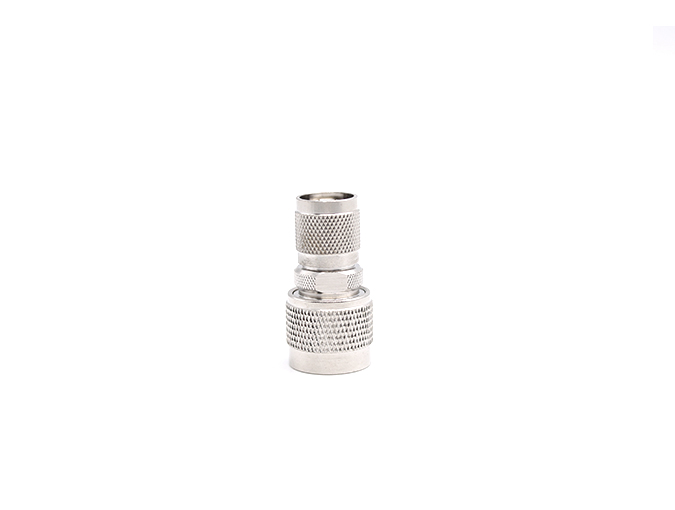

N Male to TNC Male Adapters
Model: N/TNC-JJ
Product Introduction
Our type N to TNC adapter is a between series coaxial adapter design. This 50 Ohm type N adapter is precision manufactured to RF components industry specifications.
Detailed Information
N Male to TNC Male Adapters
Teruilai P/N: N/TNC-JJ Datesheet
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedance | 50Ω | |
| Frequency range | DC-11GHZ | |
| Dieletric withstanding voltage | 1500V(volts RMS) | |
| Center contact resistance | 1.25:1 | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -55℃ - 155℃ | |
| Durability | >500 | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Pin Contact | Bronze | Gold |
| Body | Brass | Nickel |
| Coupling nut | Brass | Nickel |
| Insulator | Teflon | |
