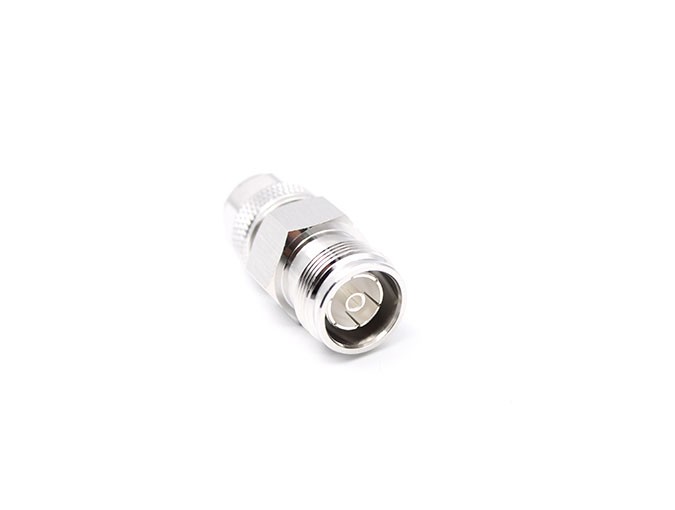

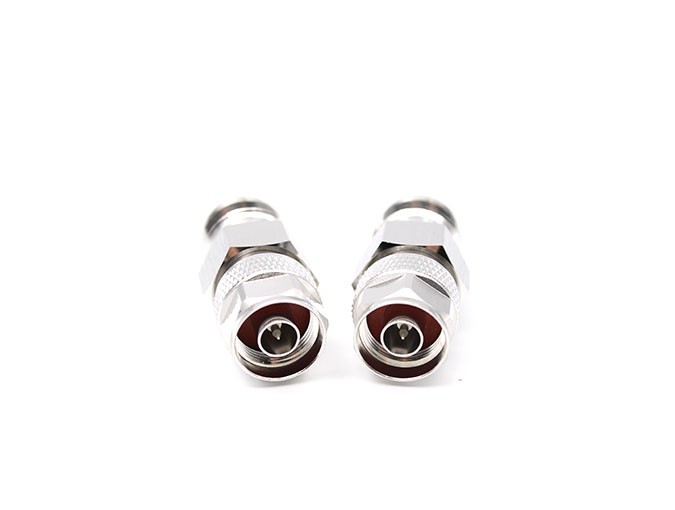

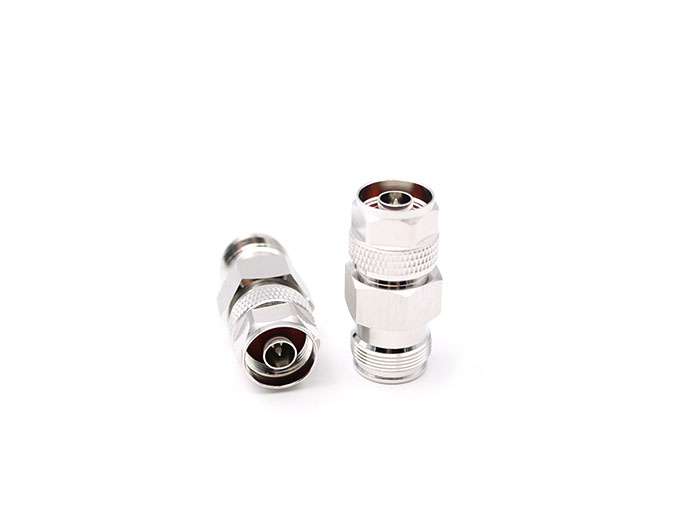

4.3-10(miniDin) Female to N Male Adapter
Model: 4.3-10/N-KJ
Product Introduction
Our 4.3-10 adapter is a in-series coaxial adapter design. This 50 Ohm 4.3-10 adapter is precision manufactured to RF components industry specifications and has a maximum frequency of 6 GHz.
Detailed Information
4.3-10(miniDin) Female to N Male Adapter
Teruilai P/N: 4.3-10/N-KJ Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-6GHZ | |
| Dielectric withstanding voltage | 2500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧10000MΩ | |
| VSWR | ≦1.15 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco plated |
| Pin contacts | Bronze | Silver plated |
| Coupling nut | Brass | Suco plated |
| Gasket | Silicon rubber | |
| Insulators | Teflon | |
