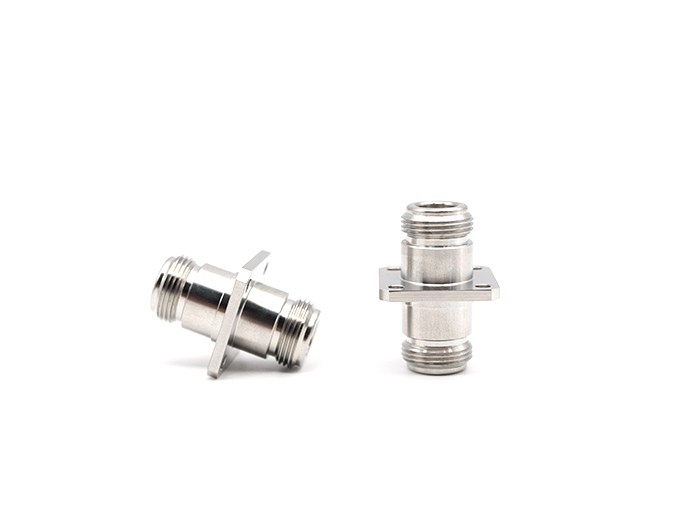

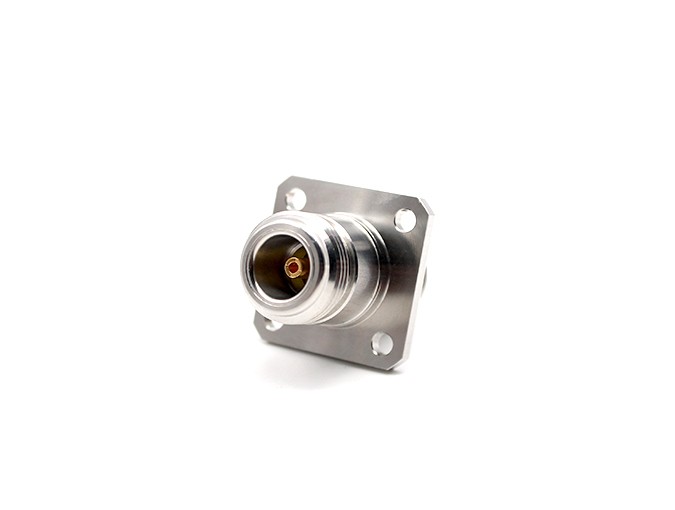

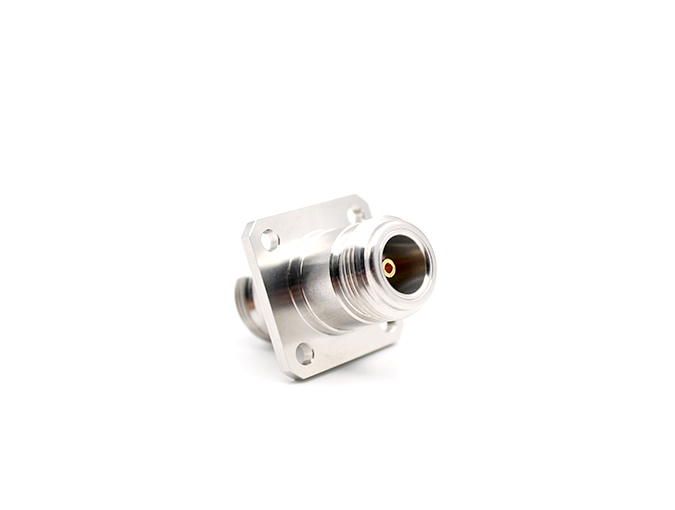

N Female to Female Flange Stainless Steel RF Adapter
Model: N-KFKG
Product Introduction
Micro RF Coaxial Connectors are one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. Micro RF Coaxial Connectors have great performance of vibration-proof, high reliability and superb electrical properties, widely used in communication applications. Concerning the cable links, clamp, crimp, and solder types are all available.
Detailed Information
N Female to Female Flange Stainless Steel RF Adapter
Teruilai P/N: N-KFKG Datasheet
| Electrical data | Requirments | |
| Frequency range | 0-18GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | ≦1.20:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ ~+165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Pin contacts | Beryllium or copper | Gold |
| Outer conductor | Stainless Steel | Passivated |
| Insulators | PTFE | |
