RF Coaxial Adapters · N

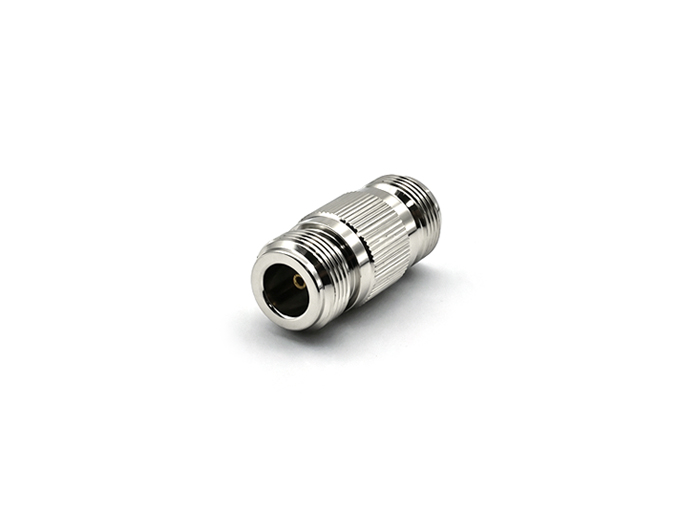

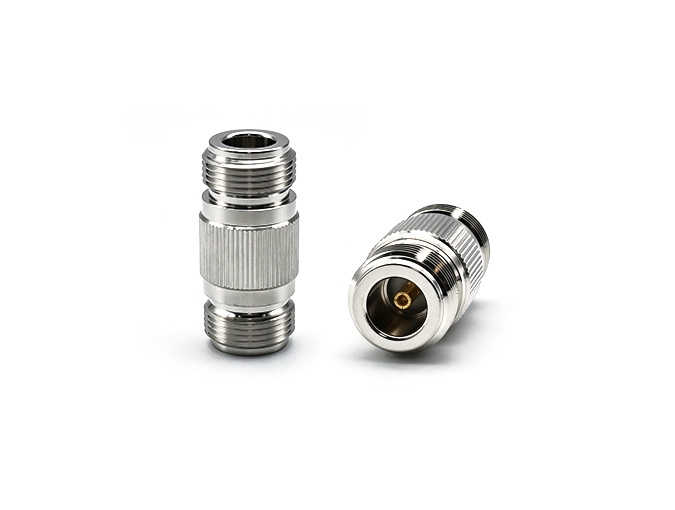

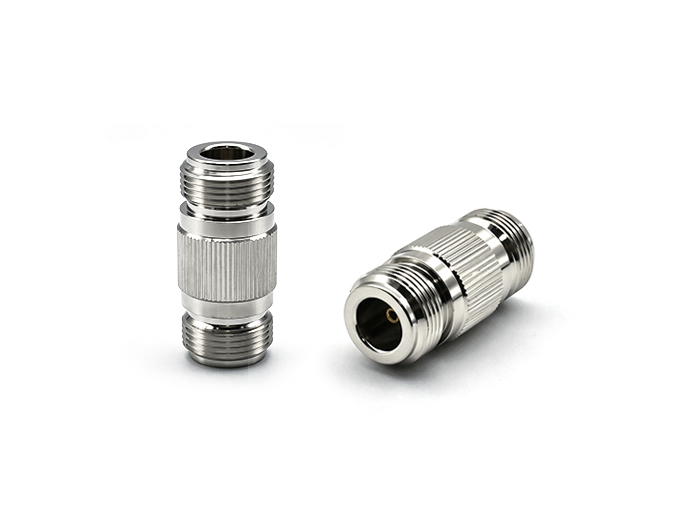

N double female RF Adapter
Model: N-KK
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
N double female RF Coaxial Adapter
Teruilai P/N: N-KK Datesheet
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-11GHz | |
| Dieletric withstanding voltage | 1500V | |
| Insulation resistance | ≧5000MΩ | |
| Center contact resistance | <1MΩ | |
| Outer contact resistance | <0.2MΩ | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Inner Contact | Phosphor bronze | Gold Plated |
| Outer contact | Brass | Nickle Plated |
| Insulators | PTFE | |
