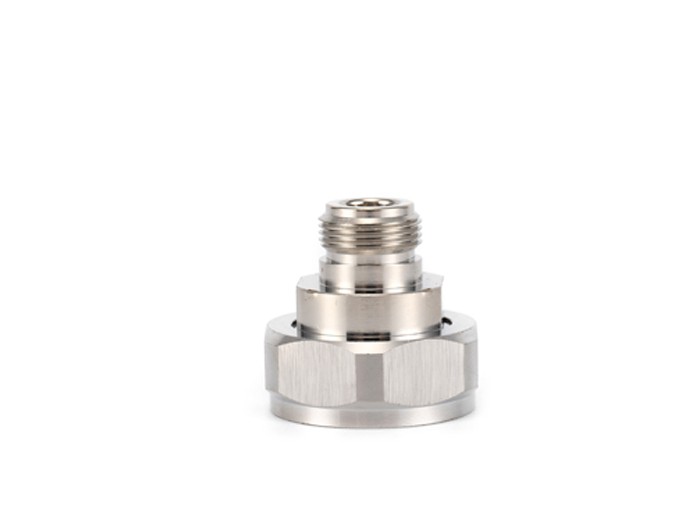

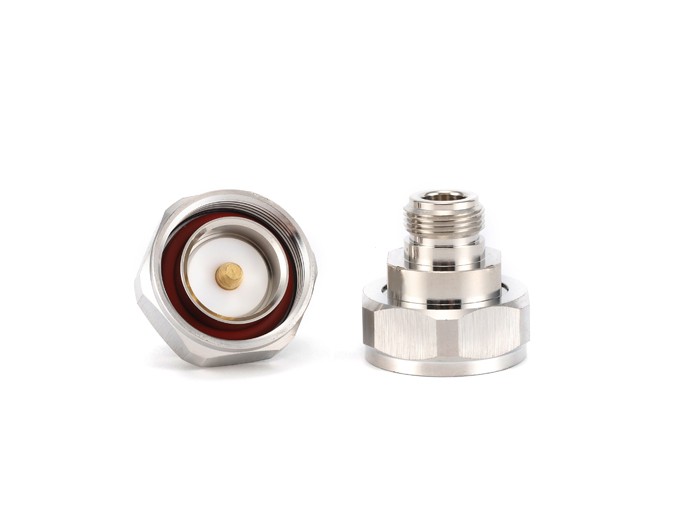

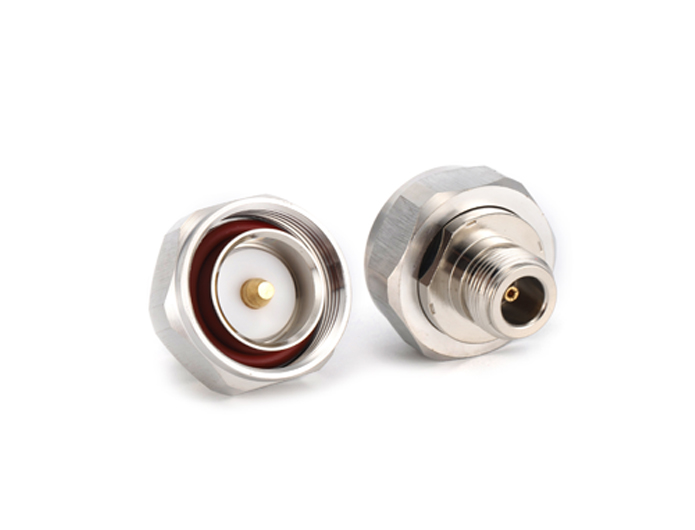

L29/DIN/7/16 male to N female RF Adapter
Model: L29-N-JK
Product Introduction
The adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
L29/DIN/7/16 male to N female RF Adapter
Teruilai P/N: L29-N-JK Outline Drawing.pdf
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-3GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | nickel plated |
| Pin contacts | Bronze | Gold-plated |
| Insulators | Teflon | |
