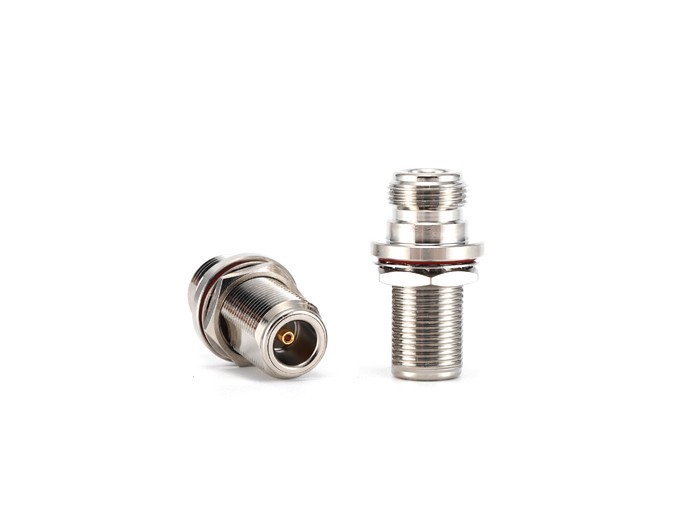

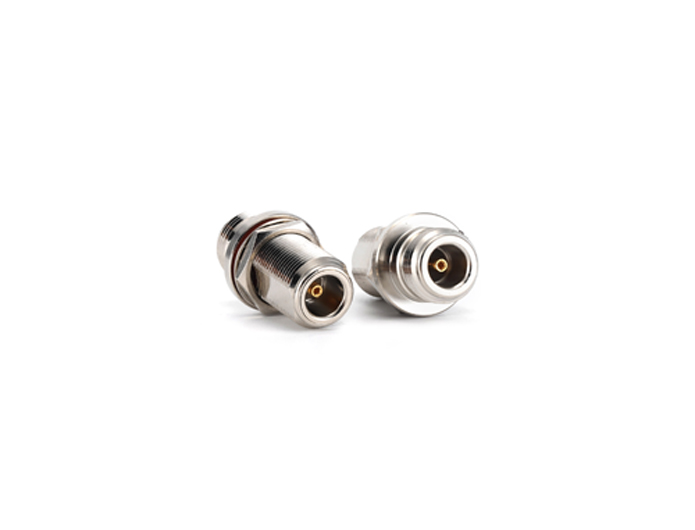

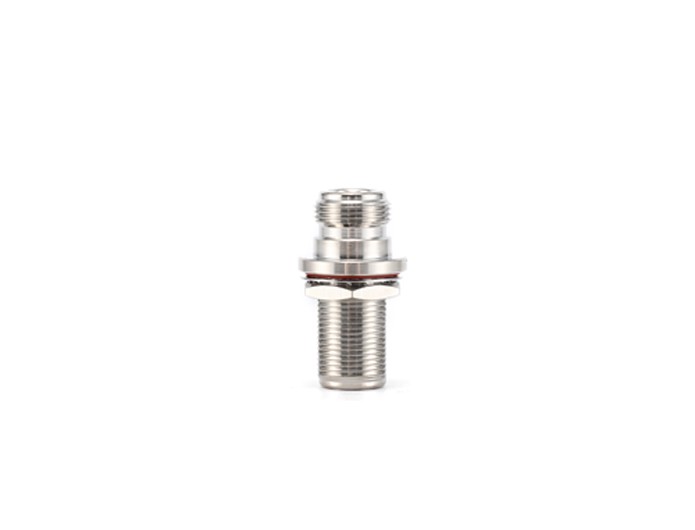

Double N female bulkhead RF Coaxial Adapter
Model: N-KYK3M
Product Introduction
The adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
Double N female bulkhead RF Coaxial Adapter
Teruilai P/N: N-KYK3M Outline Drawing.pdf
RoHS Certificate : Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.2:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Pin contacts | Brass | Gold-plated |
| Insulators | Teflon | |
