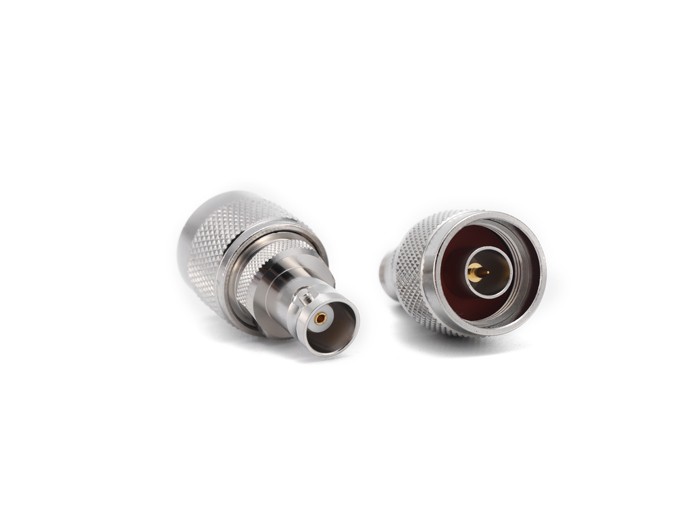

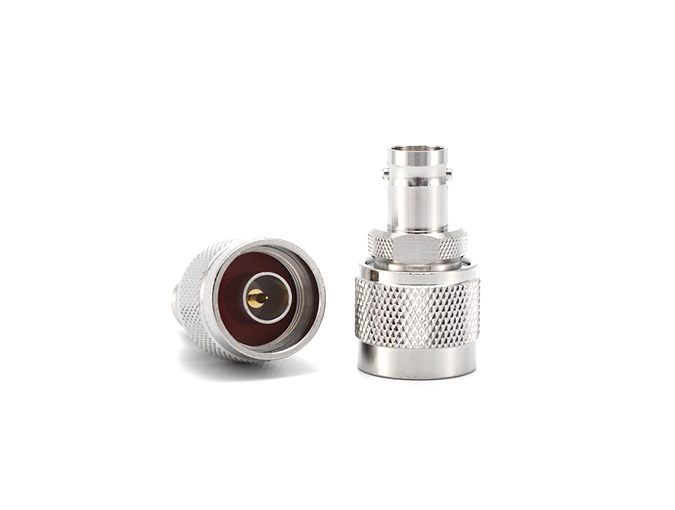

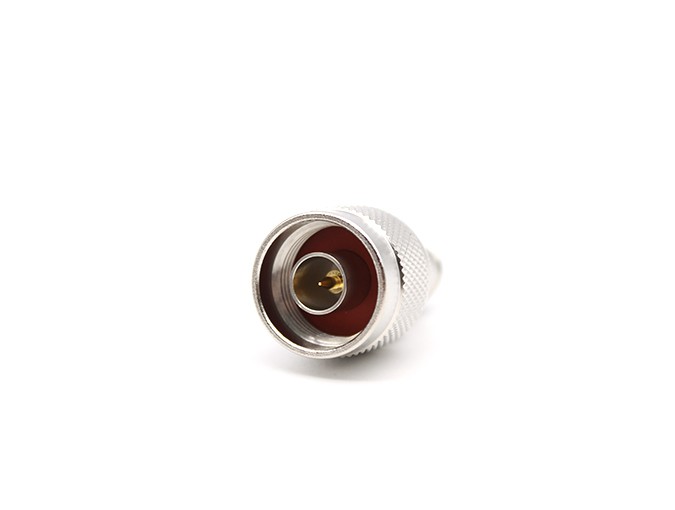

N Male (PLUG) to BNC Female (JACK) RF Adapter
Model: N/BNC-JK
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
N Male (PLUG) to BNC Female (JACK) RF Adapter
Teruilai P/N: N/BNC-JK Datesheet
| Electrical data | Requirments | |
| Frequency range | DC-4GHZ | |
| Dielectric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.30:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin contacts | Bronze | Gold |
| Coupling nut | Brass | Nickel plated |
| Insulators | PTFE | |
