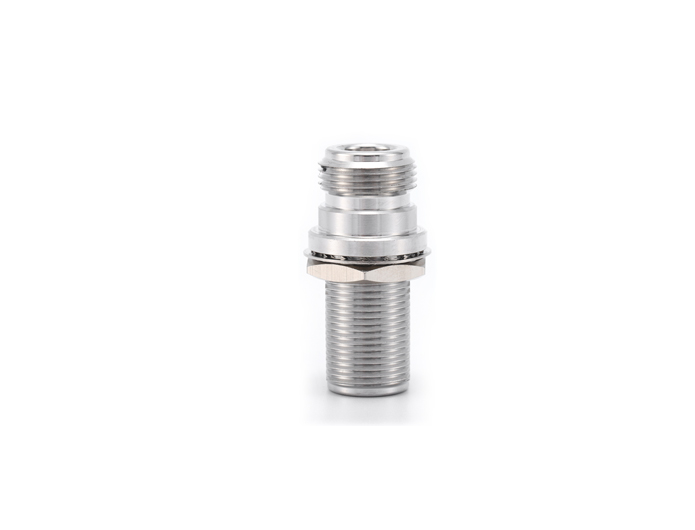

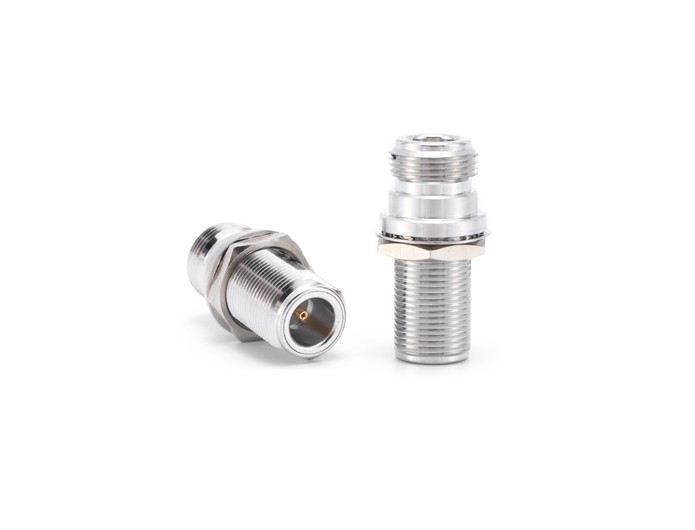

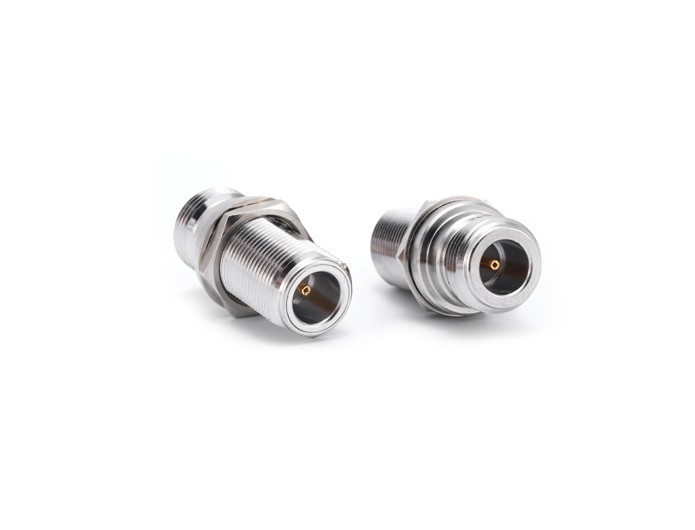

N 75Ω Female to N 75Ω Female Bulkhead RF Adapter
Model: N-75KYK3
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
N 75Ω Female to N 75Ω Female Bulkhead RF Adapter
Teruilai P/N: N-75KYK3 Outline drawing.pdf
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 75Ω | |
| Frequency range | 0-6GHZ | |
| Environmental | Requirments | |
| Temperature range | -45℃ - 125℃ | |
| RoHs Compliant | ||
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Inner contact | Phosphor Bronze | Gold Plated |
| Outer Contact | Brass | Nickel Plated |
| Insulators | PTFE | |
| Nut | Brass | Nickel Plated |
| Washer | Bronze | Nickel Plated |
