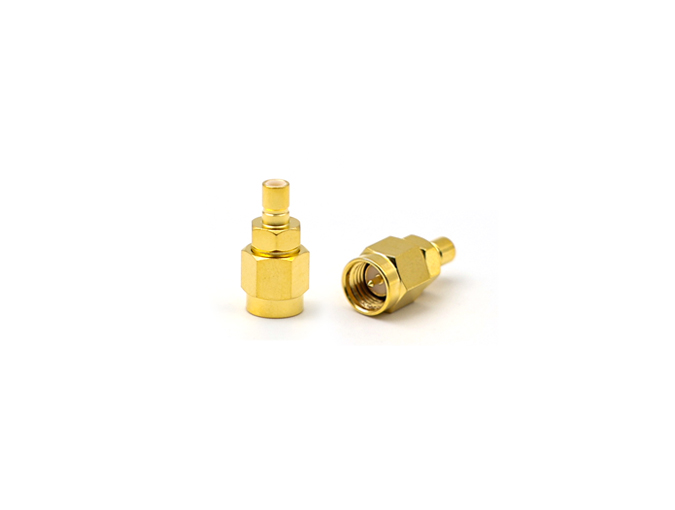

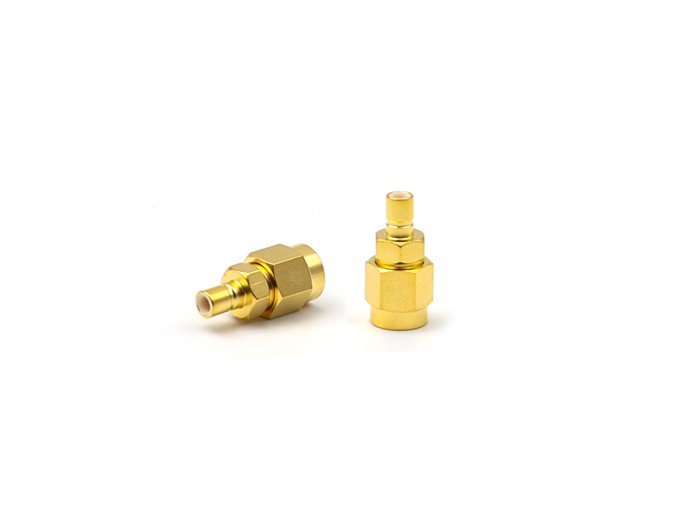

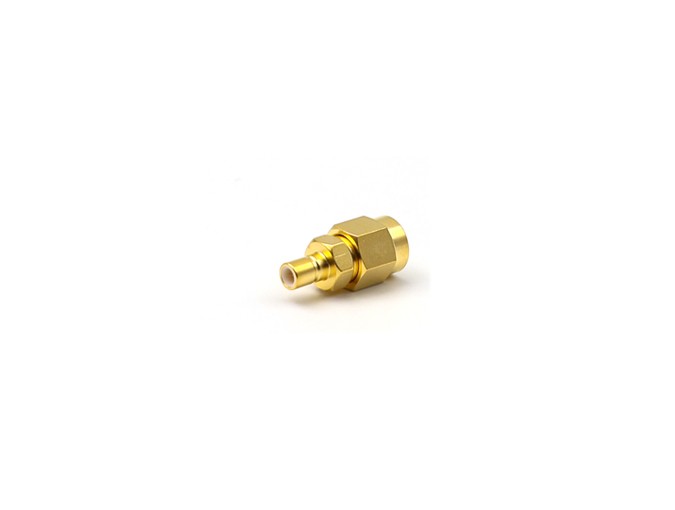

RF Adapter SMA Male to SMB Male
Model: SMA/SMB-JJ
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant .
Detailed Information
RF Adapter SMA Male to SMB Male
Teruilai P/N: SMA/SMB-JJ Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-4GHz | |
| Center Contact Resistance | ≦6MΩ | |
| Outer Contact Resistance | ≦1MΩ | |
| VSWR | ≦1.20 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
