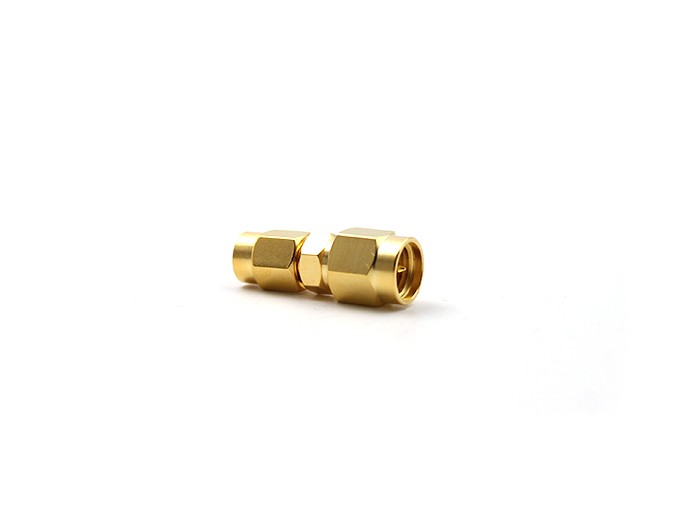

RF Adapter SMA Male to SSMA Male
Model: SMA/SSMA-JJ
Product Introduction
Detailed Information

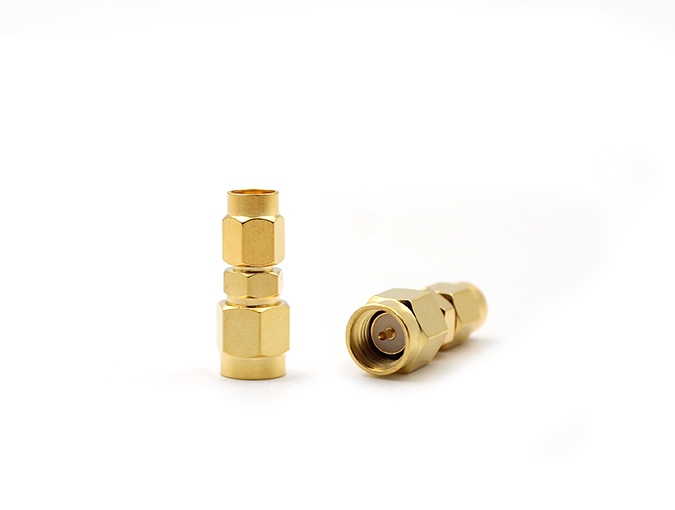

RF Adapter SMA Male to SSMA Male
Teruilai P/N: SMA/SSMA-JJ Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-11GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| VSWR | 1.30:1 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -55℃ ~ +125℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
