RF Coaxial Adapters · SMA

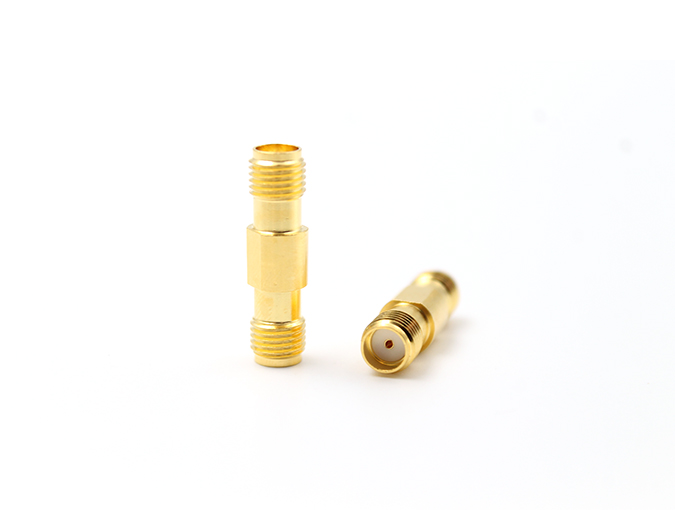

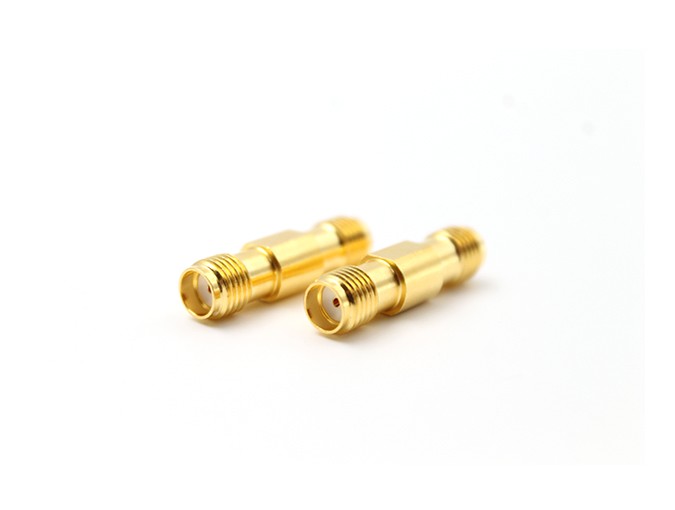

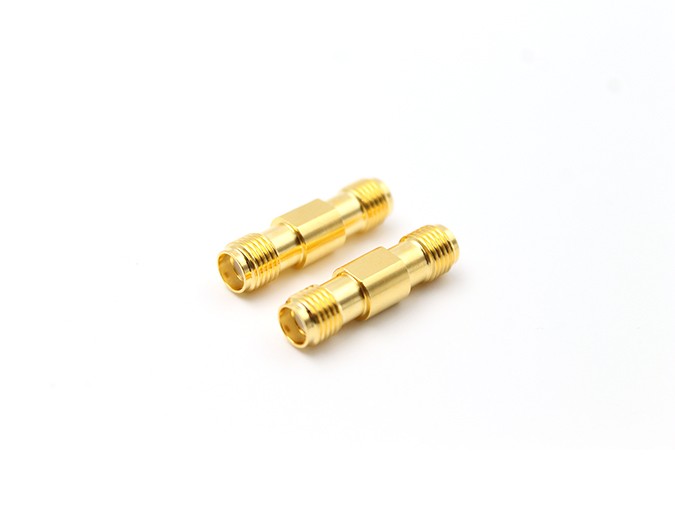

RF Adapter SMA Female to SMA Female
Model: SMA-KK-E
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency can be up to 6Ghz.
Detailed Information
RF Adapter SMA Female to SMA Female
Teruilai P/N: SMA-KK-E Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| VSWR | 1.20:1 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +125℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Beryllium copper | Gold |
| Insulators | Teflon | |
