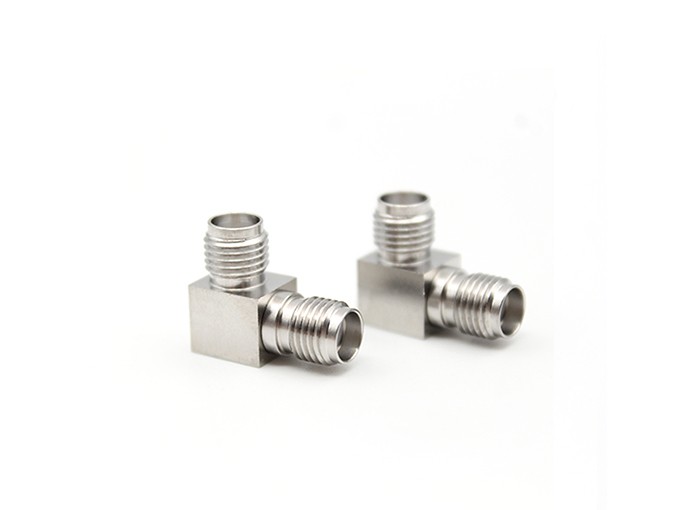

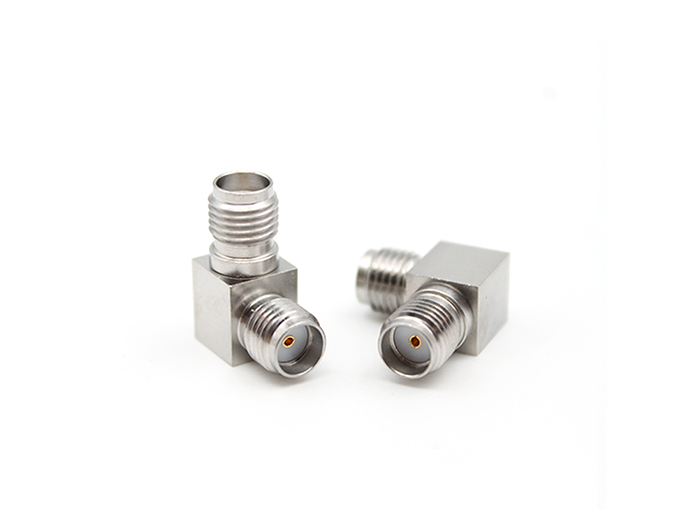

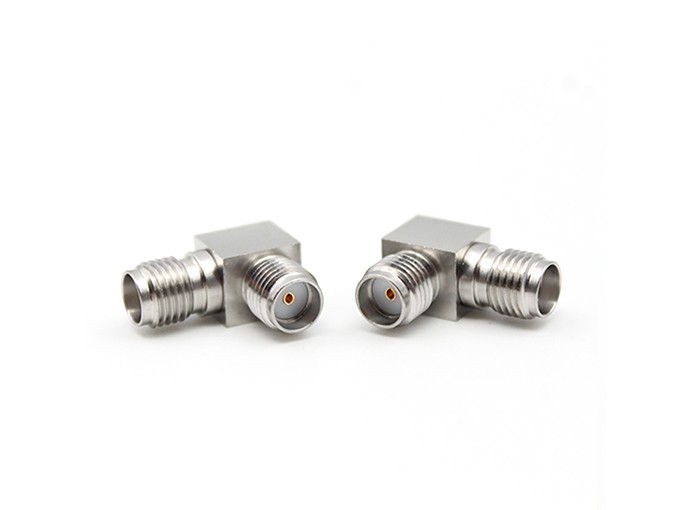

RF Adapter Stainless Steel SMA Female to Female Right Angle
Model: SMA-KWKG
Product Introduction
Type SMA is one kind of RF coaxial connectors which is small-sized thread coupling， and its characteristic impendence is 50Ω. This type of connectors has t he excellent perfomance of high reliability, high mechanical strength, high durability and optimum electric properties, which are widely used in the connection of RF circuit of mobile communication equipment and electrical instruments.
Detailed Information
RF Adapter Stainless Steel SMA Female to Female Right Angle
Teruilai P/N: SMA-KWKG Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-18GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| VSWR | ≦1.20 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin Contact | Brass | Gold |
| Insulators | PTFE | |
| Coupling nut | Stainless steel | Passivated |
