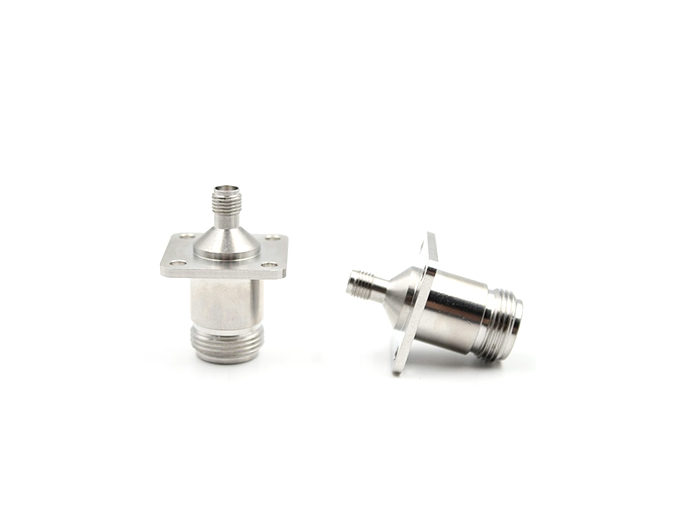

RF Adapter Stainless Steel N Female Flange to SMA Female
Model: N/SMA-KFKG
Product Introduction
The adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
RF Adapter Stainless Steel N Female Flange to SMA Female
Teruilai P/N: N/SMA-KFKG
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.2 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +155℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium or copper | Gold |
| Insulators | PTFE | |
