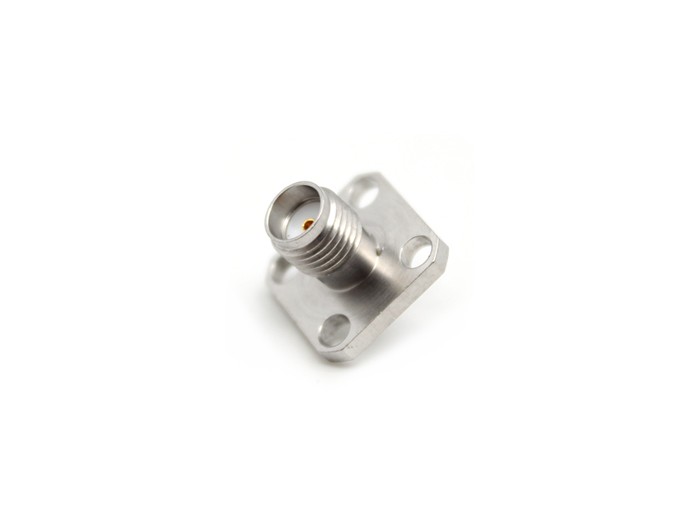

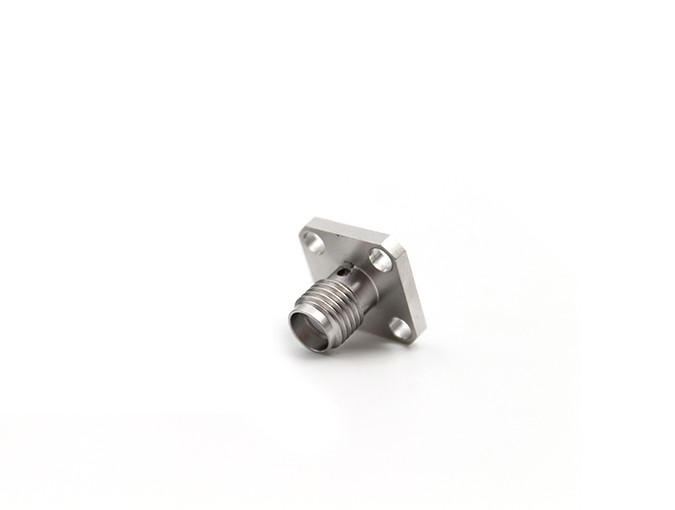

Stainless Steel SMA Female Flange Connector Terminal
Model: SMA-KFD60G
Product Introduction
The SMA series is a miniature threaded-coupling RF coaxial connector with a characteristic impedance of 50Ω. These connectors offer high reliability, high mechanical strength, excellent durability, and superior electrical properties, making them widely used in mobile communication equipment and electronic instruments. The product presented on this page is an SMA female flange terminal. As a professional RF connector manufacturer, Teruilai also supplies a complete range of SMA plug connector products to meet all your interconnect needs.
Detailed Information

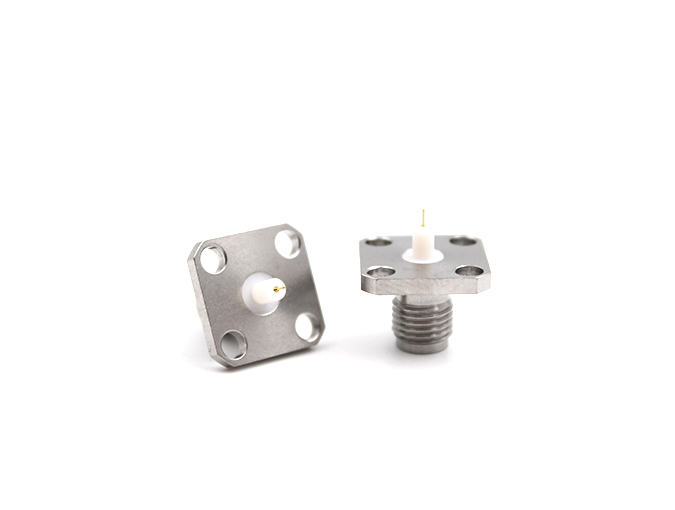

Stainless Steel SMA Female Flange Connector Terminal
Teruilai P/N: SMA-KFD60G
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| VSWR | 1.20:1 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin Contact | Beryllium copper | Gold |
| Insulators | PTFE | |
Our SMA Plug Connector Series
While this page features a female flange product, as a leading SMA plug connector China manufacturer, we offer a full range of SMA plug connectors:
SMA Male Plug Connectors
Our SMA male connector female plug series (SMA male plugs that mate with standard SMA female interfaces) includes:
Straight SMA male plug – Standard for cable assemblies
Right-angle SMA male plug – 90° bend for tight spaces
Bulkhead SMA male plug – Panel or chassis mounting
SMA Plug Crimp Connectors
For high-volume production, we offer the SMA plug crimp connector. Benefits include:
Fast termination – Seconds with a crimp tool
Consistent results – repeatable crimp die performance
High reliability – resists vibration and thermal cycling
Our SMA plug crimp connector is compatible with RG178, RG316, RG58, LMR-100, and more. Matching crimp tools and strip dimensions are available.
Why Choose Teruilai as Your SMA Plug Connector Manufacturer?
As a trusted SMA plug connector manufacturer based in Danyang, China, we provide:
Technical Capabilities
Precision CNC machining
Customization: cable matching, laser marking, color coding
2D drawings and 3D STEP models
Quality Assurance
ISO 9001, RoHS, REACH
100% electrical testing (VSWR, insertion loss)
XRF plating thickness inspection
Commercial Advantages
Samples available for validation
Flexible MOQ: 100 pcs for standard plugs, as low as 20 pcs for samples
Lead time: 15-30 days for production, 7-10 days for samples
Payment: T/T (30% deposit, 70% against B/L), PayPal for small orders
