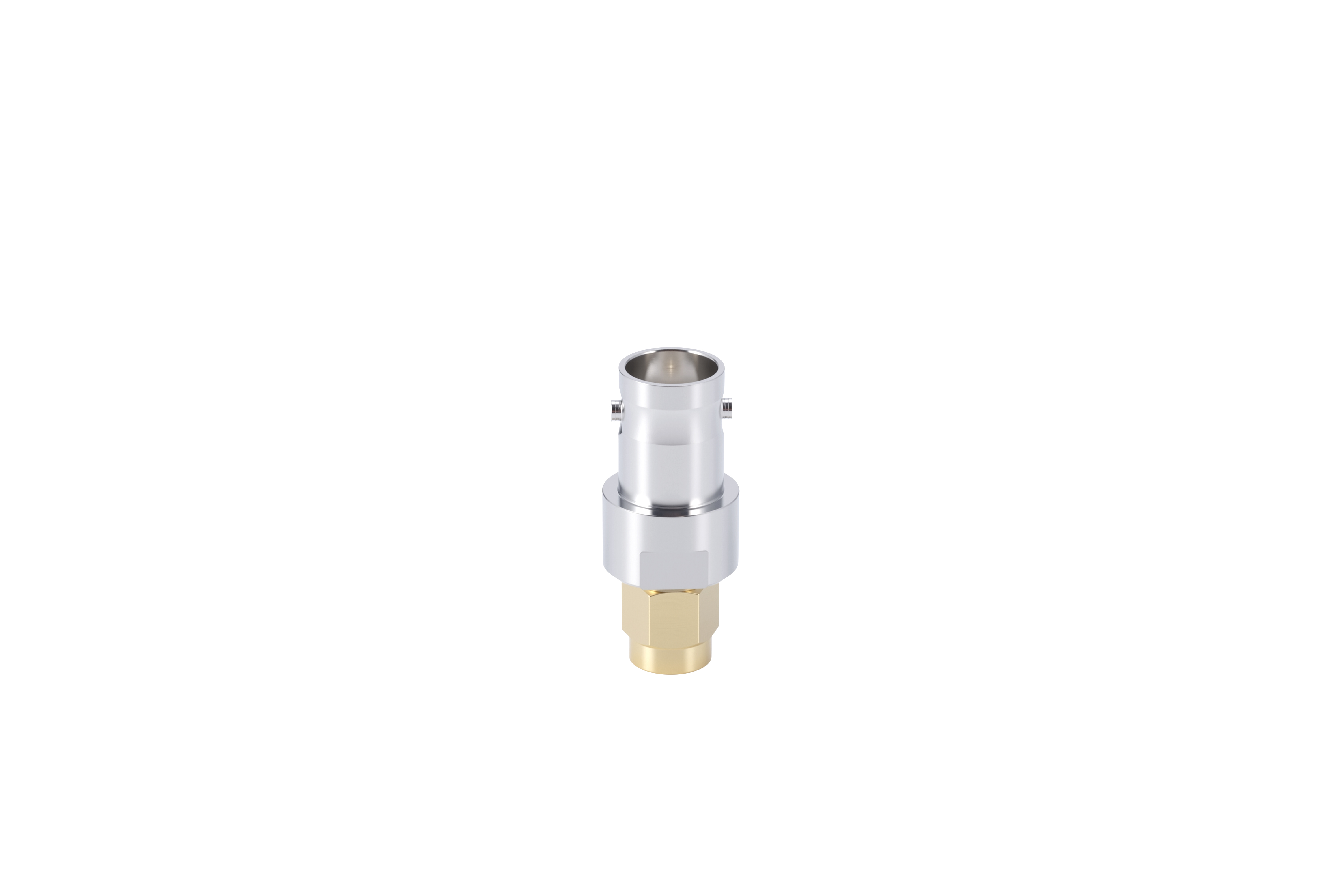

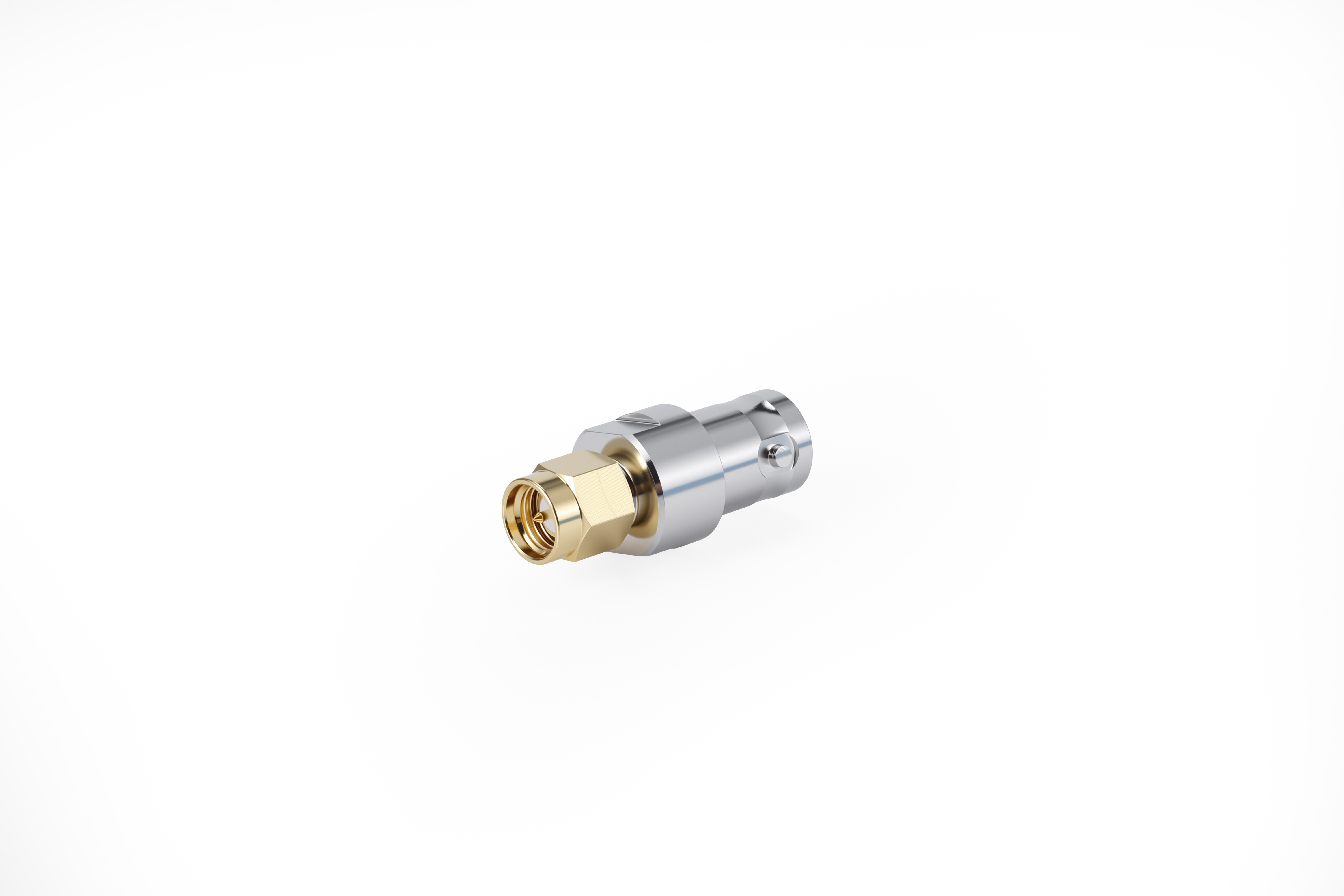

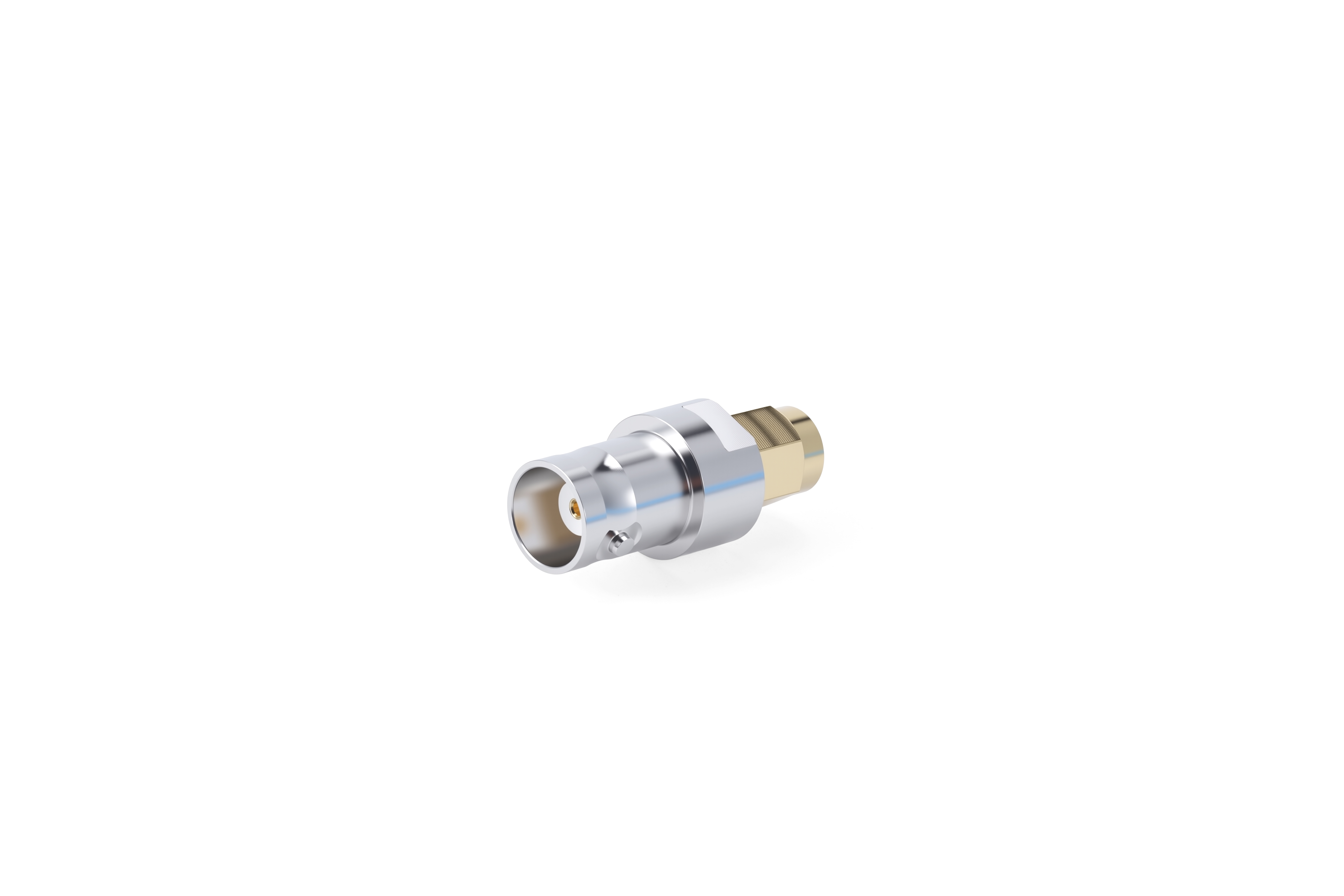

BNC Female to SMA Male Adapter
Model: BNC/SMA-KJ-F
Product Introduction
The adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
BNC Female to SMA Male Adapter
Teruilai P/N: BNC/SMA-KJ-F Datesheet
| Electrical data | Requirments | |
| Frequency range | DC-4GHZ | |
| Dieletric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| VSWR | 1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco Plated |
| Inner contacts | Brass | Gold |
| Insulators | Teflon | |
