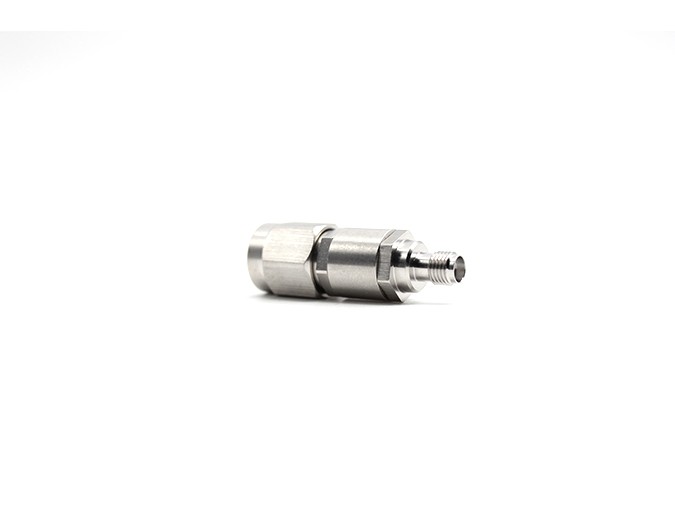

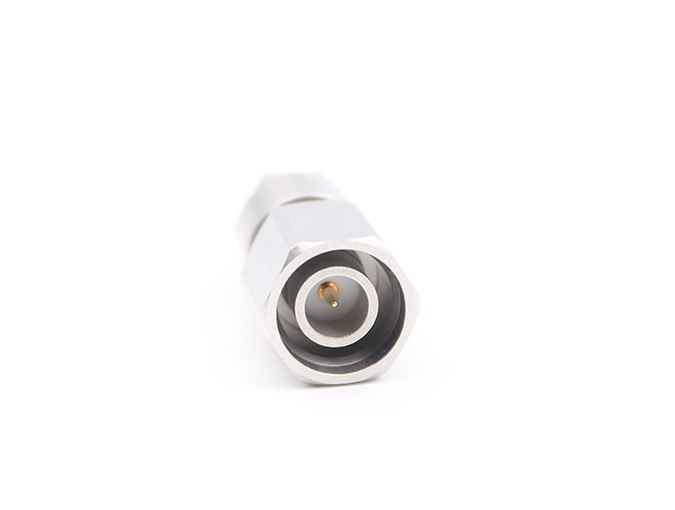

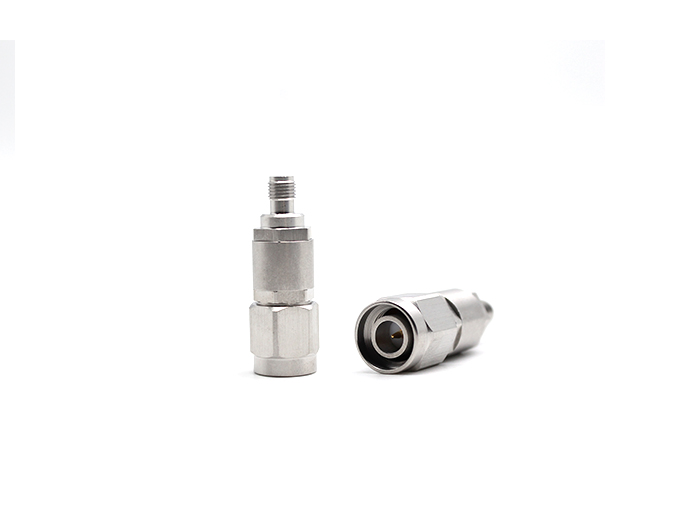

RF Adapter Stainless Steel TNC Male to SMA Female
Model: TNC/SMA-JKG
Product Introduction
TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.
Detailed Information
RF Adapter Stainless Steel TNC Male to SMA Female
Teruilai P/N: TNC/SMA-JKG Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-11GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.5mΩ | |
| .Outer conductor | ≦0.2mΩ | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Psssivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | Teflon | |
| Coupling Nut | Stainless steel | Psssivated |
