RF Coaxial Adapters · SMA

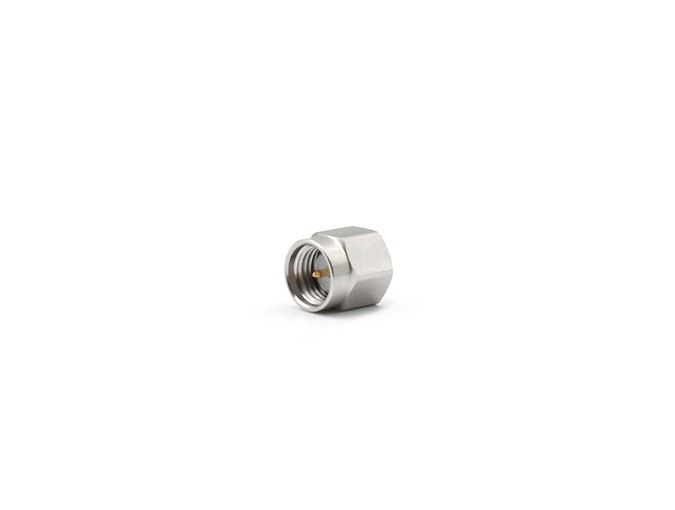

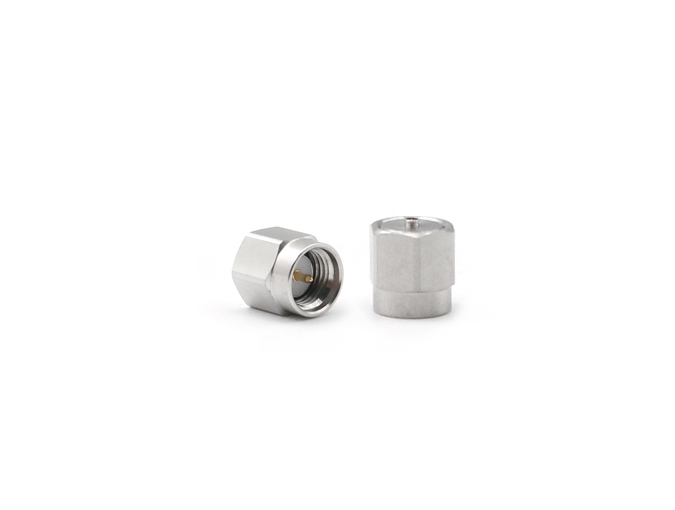

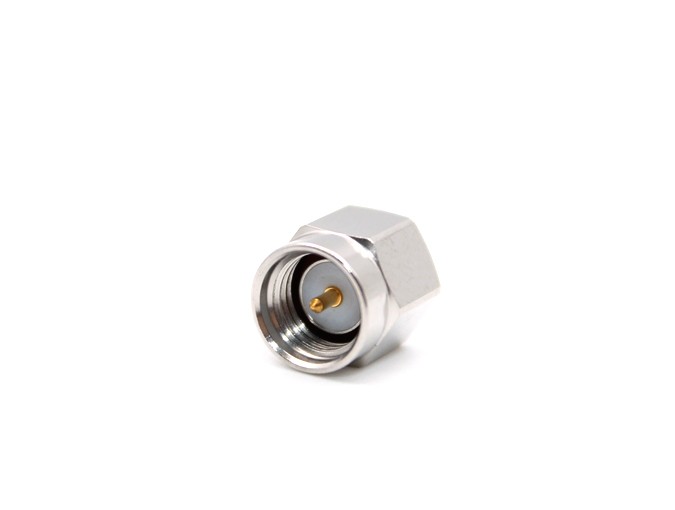

Precision Adapter SMA male to U.FL3 male
Model: SMA/IPEX3-JJG
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency can be up to 6Ghz.
Detailed Information
Precision Adapter SMA male to U.FL3 male
Teruilai P/N: SMA/IPEX3-JJG Datasheet
| Electrical data | Requirments | |
| Frequency range | 0-6GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | passivated |
| Pin contacts | Bronze | Gold |
| Insulators | Teflon | |
