RF Coaxial Adapters · SMA
RF Coaxial Adapter N female to SMA female 4 holes flange
Model: N/SMA-KFK1A
Product Introduction
The adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information

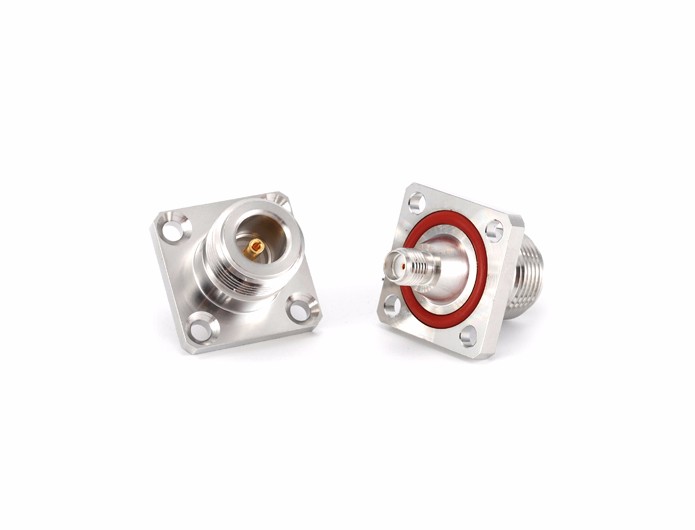

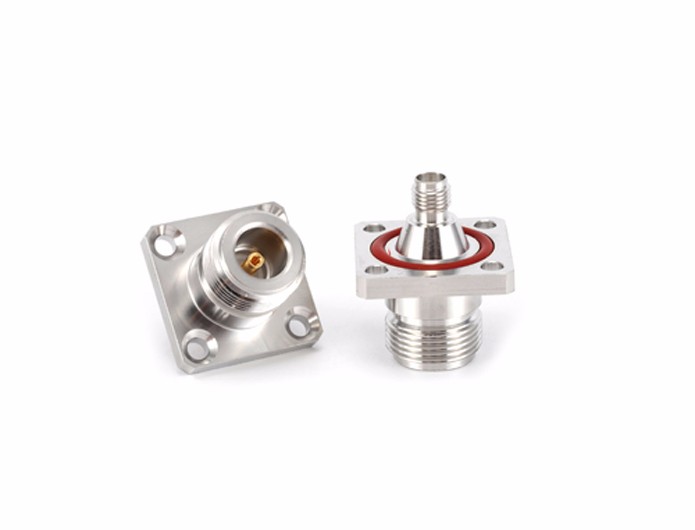

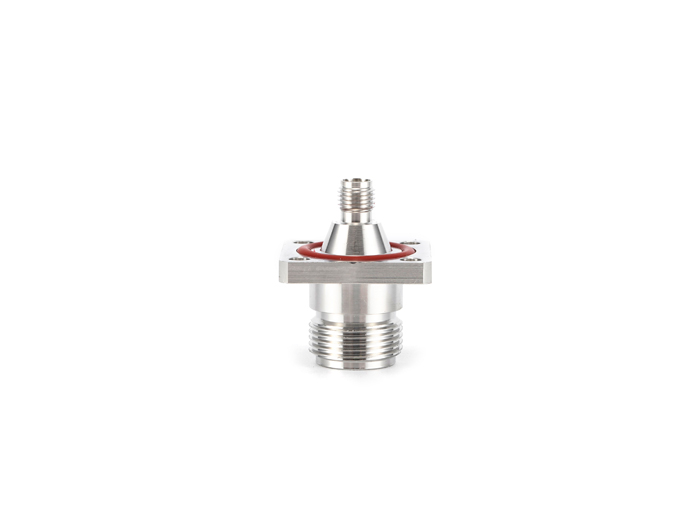

RF Coaxial Adapter N female to SMA female 4 holes flange
Teruilai P/N:N/SMA-KFK1A Outline Drawing.pdf
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Characteristic impedance | 50Ω | |
| Frequency | 0-11Ghz | |
| Dieletric withstanding voltage | 1000V(volts RMS) | |
| Center contact resistance | ≦3MΩ | |
| Outer Contact resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000MΩ | |
| Environmental&Mechanical data | Requirments | |
| Temperature range | -55℃ to 85℃ | |
| RoHS Compliant | ||
| Durability (matings) | ≧500 cycles | |
| Material&Plating | Requirments | |
| Body | Brass,nickel-plated | |
| Pin contacts | Phosphor bronze,Gold plated | |
| Insulators | Teflon | |
| Gasket | Silicon rubber | |
