RF Coaxial Adapters · SMA

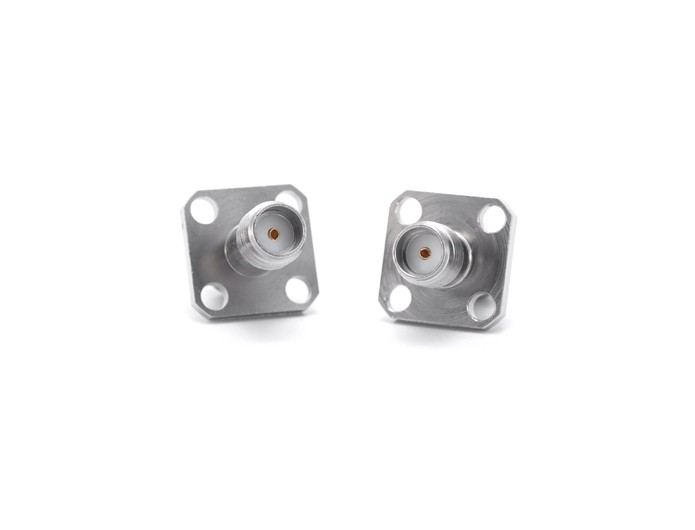

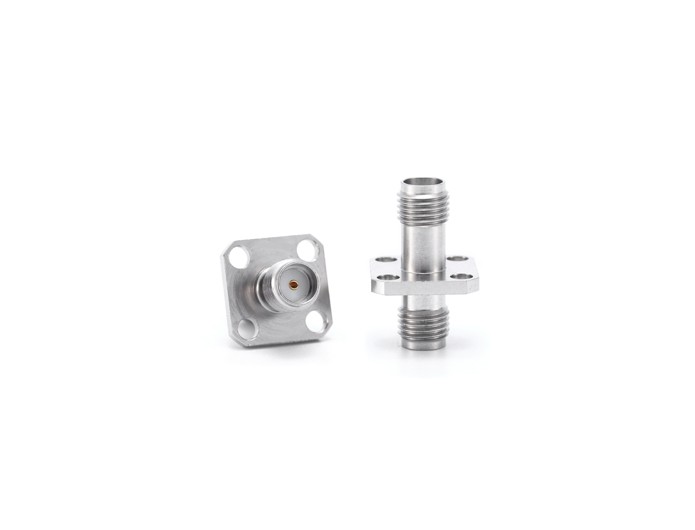

SMA female to SMA female 4 Holes Flange Stainless Steel RF Coaxial Adapter
Model: SMA-KFKG
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency can be up to 18Ghz.
Detailed Information

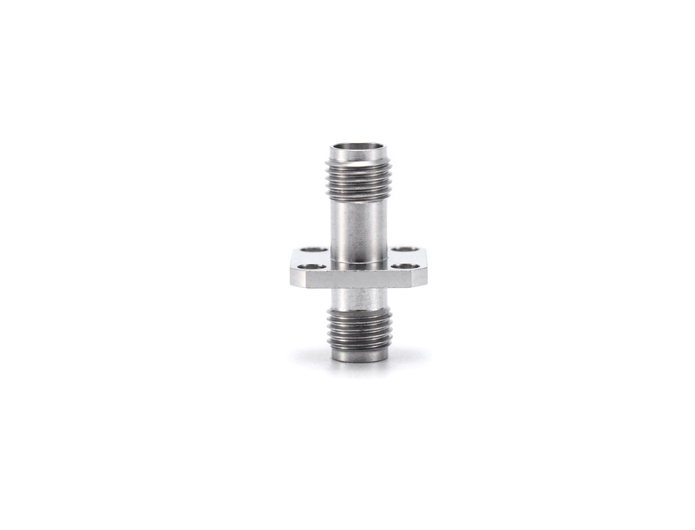

SMA female to SMA female 4 Holes Flange Stainless Steel RF Coaxial Adapter
Teruilai P/N: SMA-KFKG Outline drawing.pdf
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Frequency range | DC-18GHZ | |
| VSWR | 1.20:1 | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -55℃ - 165℃ | |
| Durability(matings) | >500 | |
| RoHs Compliant | Yes | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Pin Contact | Beryllium Copper | Gold Plated |
| Body | Stainless Steel(SU303) | Passivated |
| Insulators | Teflon | |
| Interface Standards | ||
| SMA | MIL-STD-348A | |
