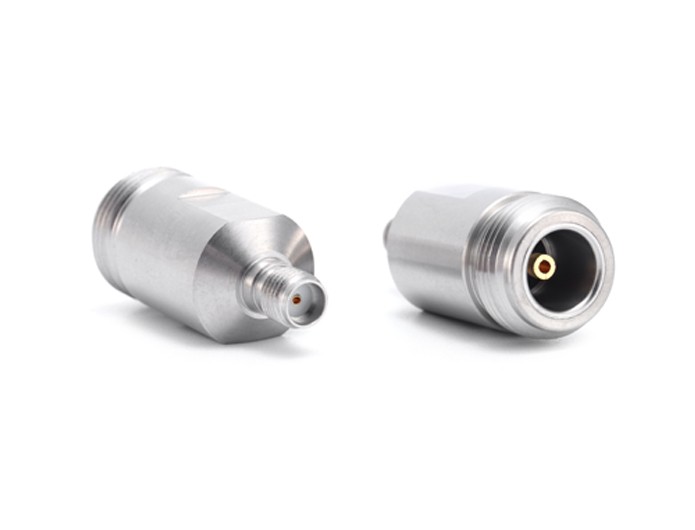

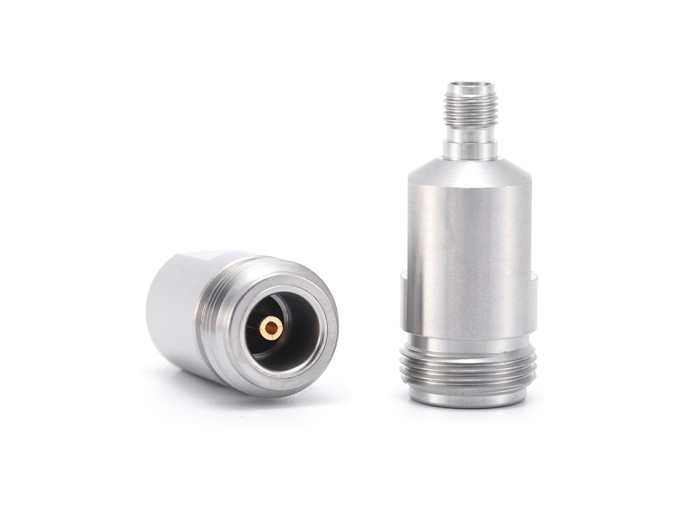

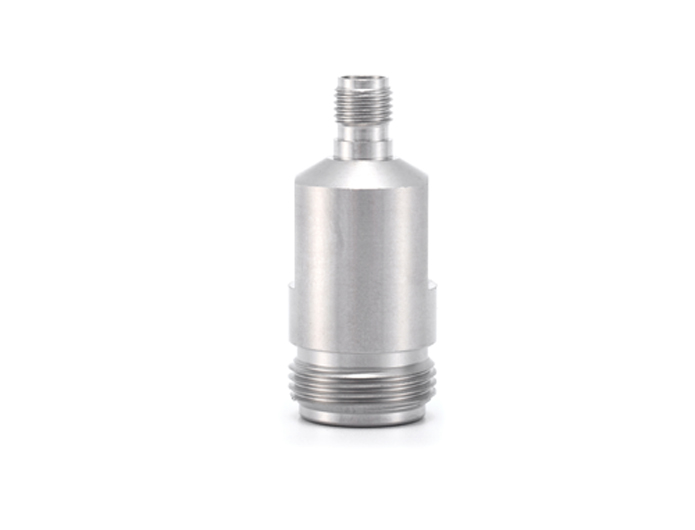

N female to SMA female Stainless Steel RF Coaxial Adapter
Model: N/SMA-KKG
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
N female to SMA female Stainless Steel RF Coaxial Adapter
Teruilai P/N: N/SMA-KKG Outline drawing.pdf
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedance | 50Ω | |
| Frequency range | DC-18GHZ | |
| VSWR | 1.20:1 | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -45℃ - 85℃ | |
| Durability (matings) | >500 | |
| RoHs Compliant | Yes | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Pin contact | Beryllium Copper | Gold plated |
| Body | Stainless Steel(SU303) | Passivated |
| Insulators | PEI | |
| Interface Standards | ||
| SMA | MIL-STD-348A | |
| N | MIL-STD-348A | |
