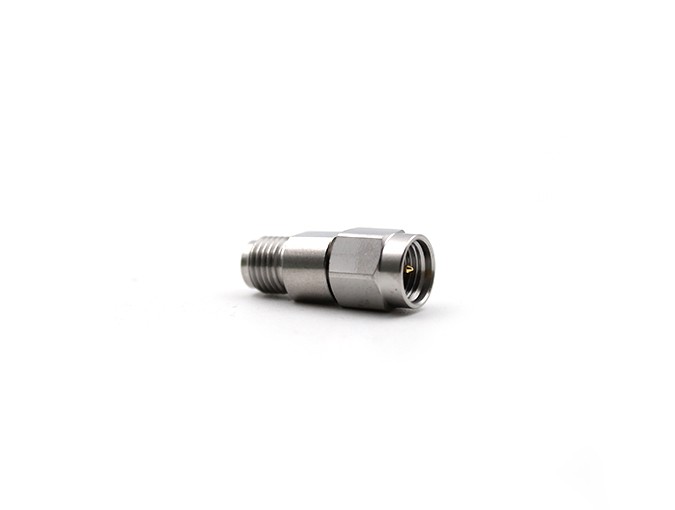

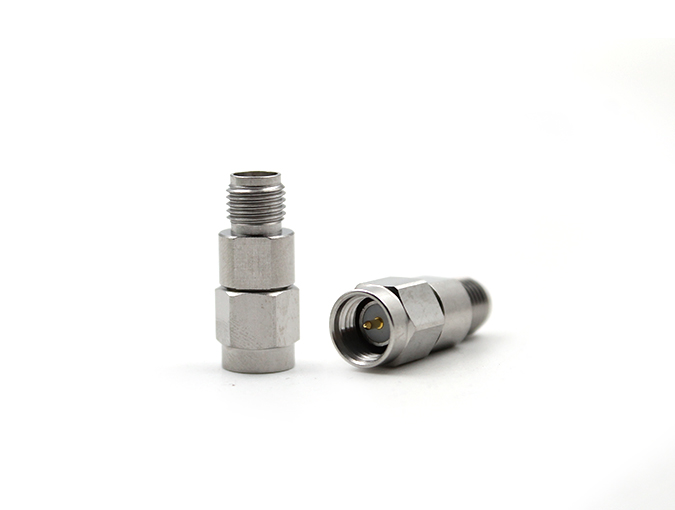

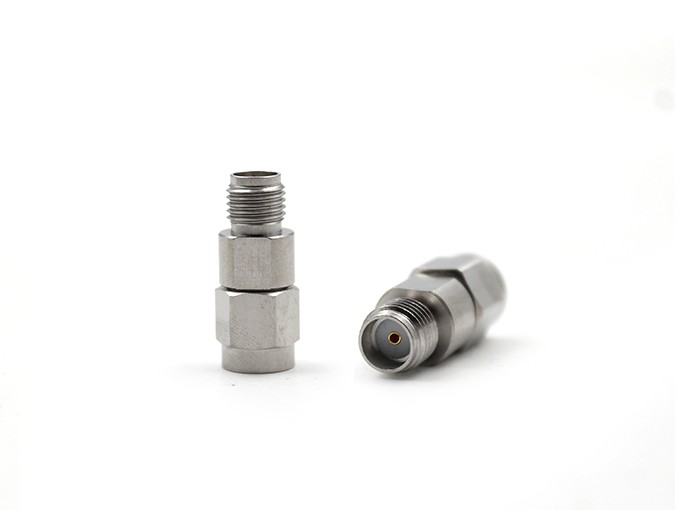

SMA Male to SMA Female Stainless Steel RF Adapter Frequency up to 26.5Ghz
Model: SMA-JKG
Product Introduction
Series SMA adapters has excellent performance with high frequency and low VSWR . The mterial can be gold -plated copper or stainless steel . Both of them are RoHS compliant.
Detailed Information
SMA Male to SMA Female Stainless Steel RF Adapter Frequency up to 26.5Ghz
Teruilai P/N: SMA-JKG Datesheet
RoHS certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-26.5GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel ,passivated | |
| Pin contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
