RF Coaxial Adapters · 3.5mm

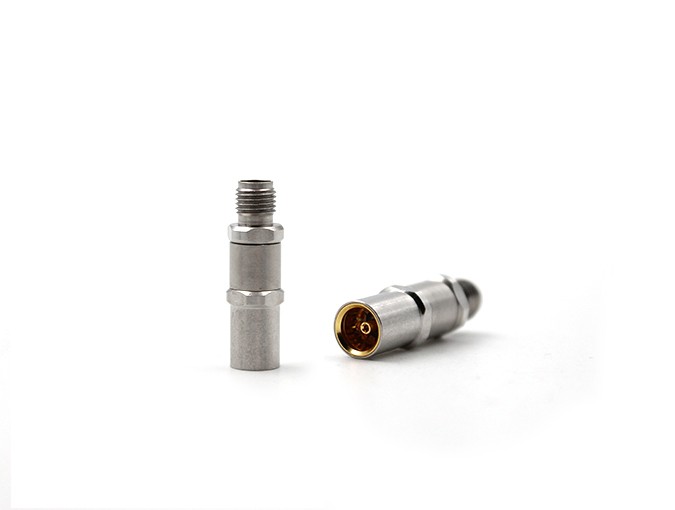

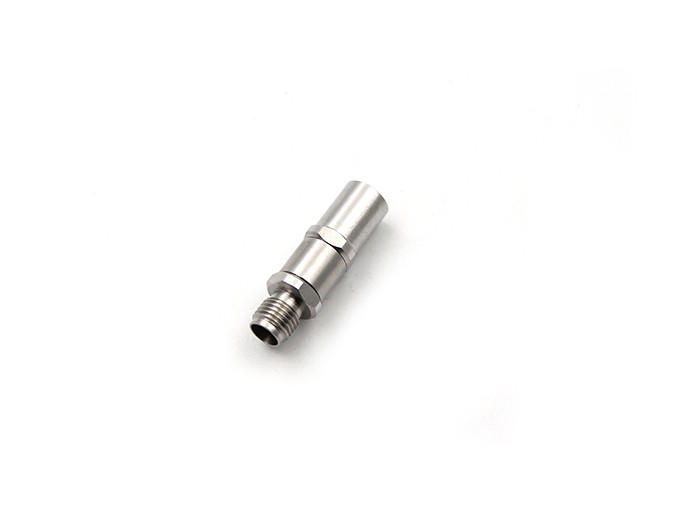

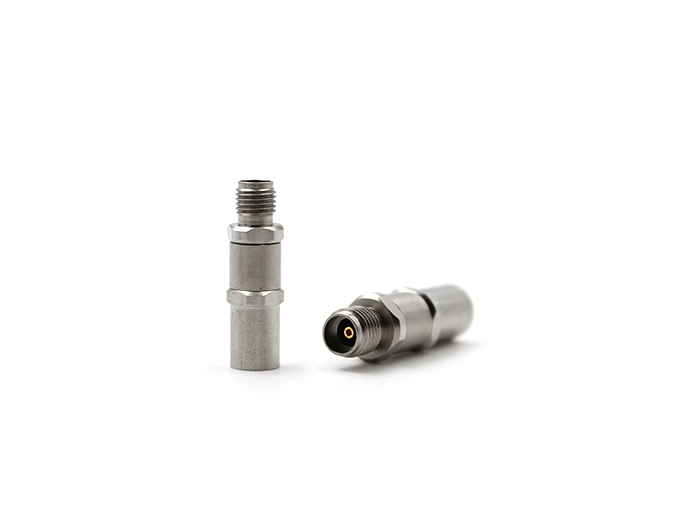

Precision stainless steel Adapter 3.5 Female to BMA Female
Model: 3.5/BMA-KKG
Product Introduction
Series 3.5mm Precision adapter can reach the frequency up to DC 26.5Ghz. They are the guarantee for the connection between different seriels of RF coaxial connectors ,widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
Teruilai P/N: 3.5/BMA-KKG Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Dieletric withstanding voltage | 750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | Teflon | |
