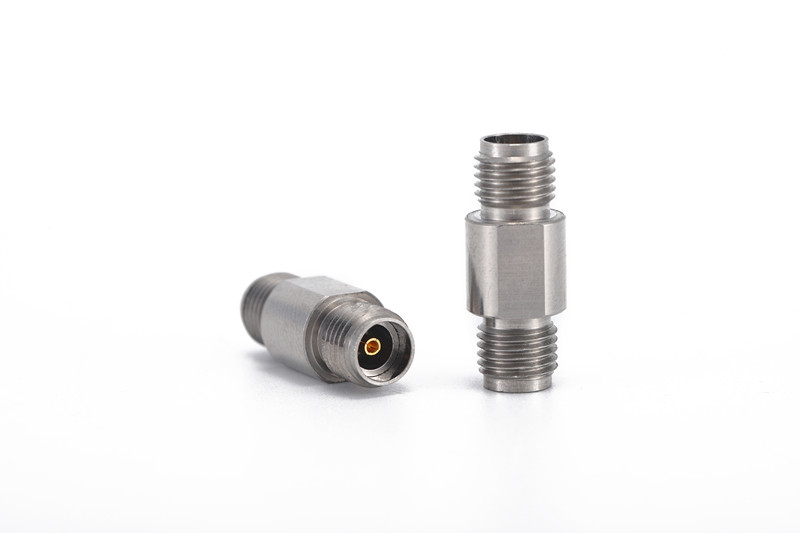

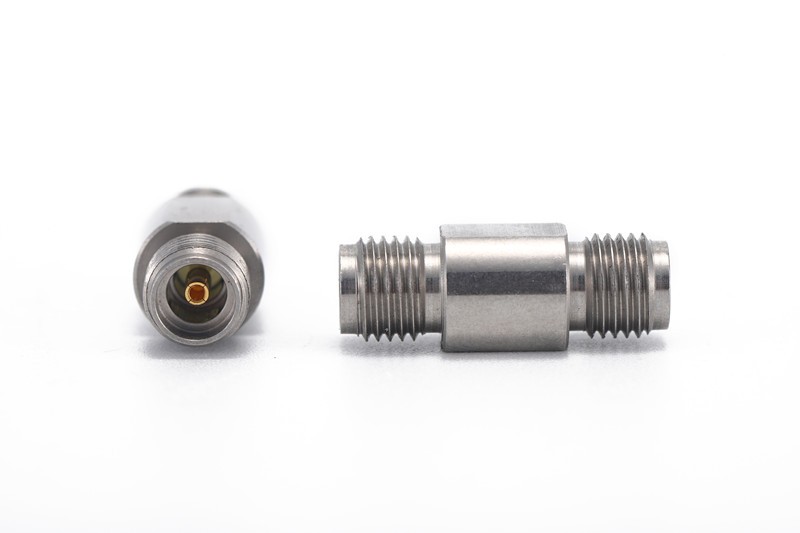

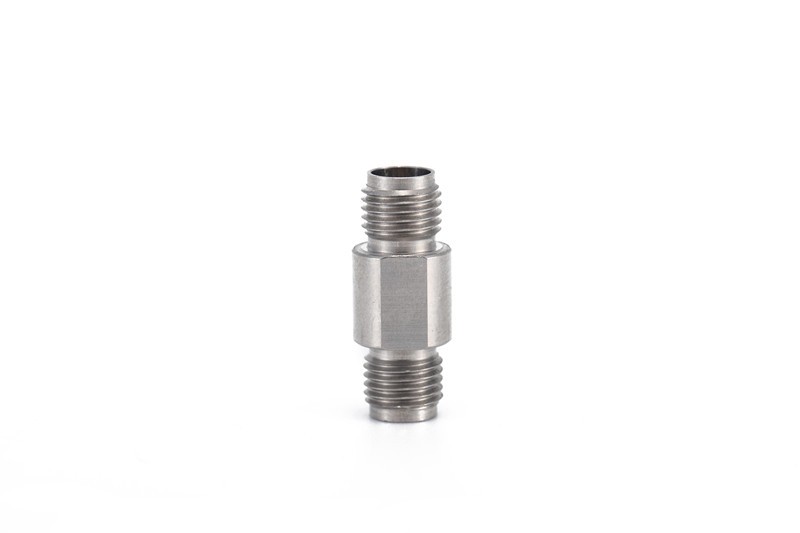

3.5mm Female to 3.5mm Female Precision RF Adapter
Model: 3.5-KKG
Product Introduction
Series 3.5mm Precision adapter can reach the frequency up to DC 26.5Ghz. They are the guarantee for the connection between different seriels of RF coaxial connectors ,widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
3.5mm Female to 3.5mm Female Precision RF Adapter
Teruilai P/N: 3.5-KKG Outline Drawing.pdf
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-26.5Ghz | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | stainless steel (Su303),passivated | |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
