RF Coaxial Adapters · 2.4mm
Precision Adapter 2.4 Female to 2.4 Female
Model: 2.4-KK-F
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information

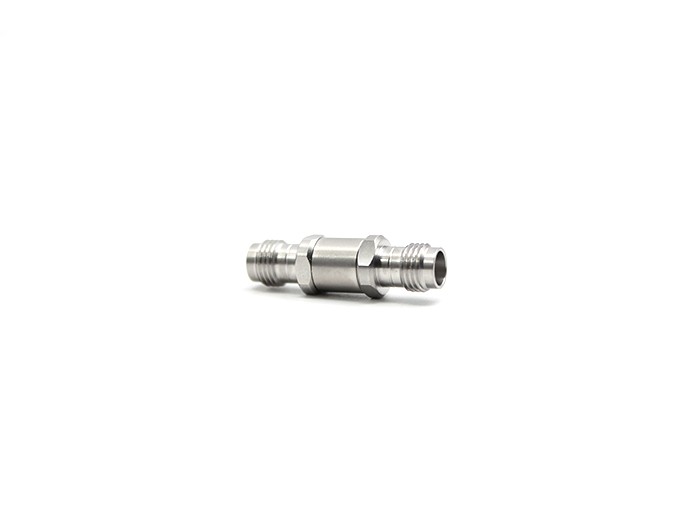

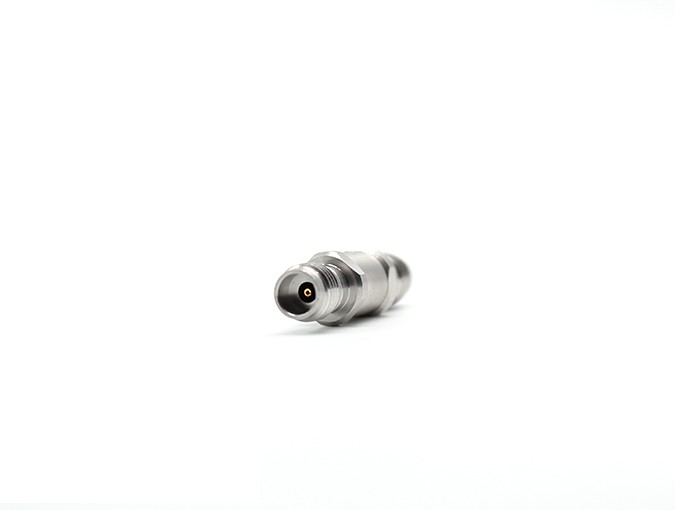

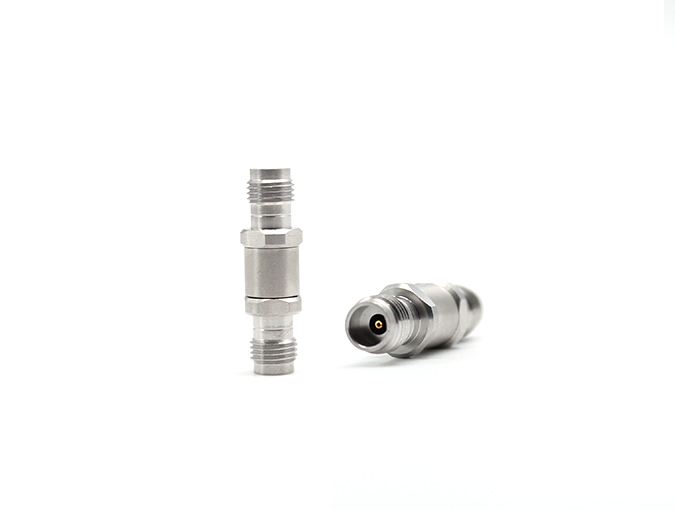

Precision Adapter 2.4 Female to 2.4 Female
Teruilai P/N : 2.4-KK-F
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-50GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +65℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold |
| Insulators | PEI | |
