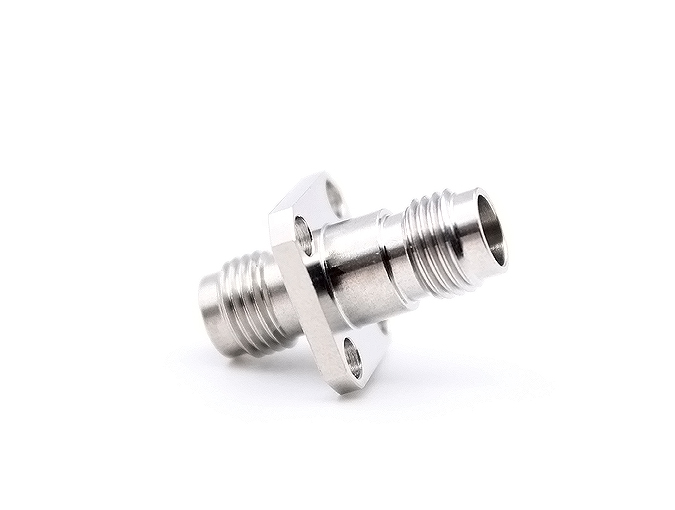

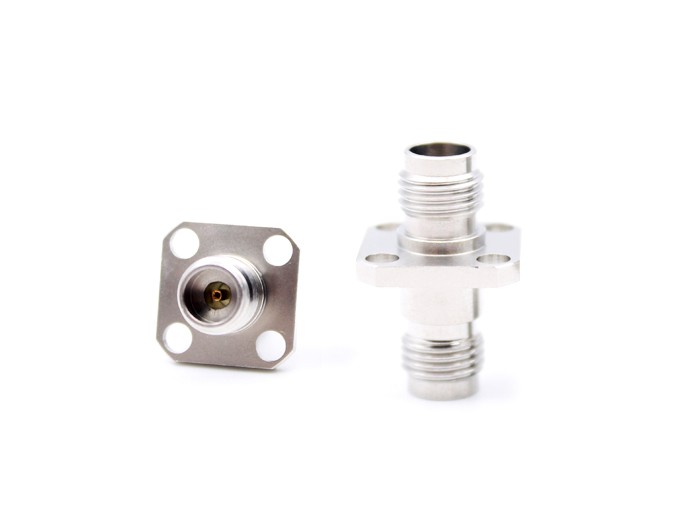

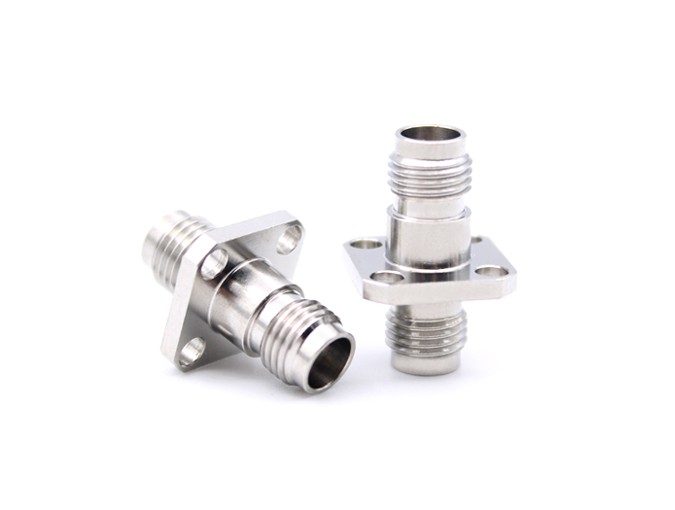

2.4mm Female to 2.4mm Female Flange RF Adapter
Model: 2.4-KFKG
Product Introduction
2.4mm Connector is one kind of Precision Microwave Connectors, The frequency can be up to 50GHZ.,The products have been widely used in the field of Testing System、Aerospace Field、 Microwave Weapon Systems.
Detailed Information
2.4mm Female to 2.4mm Female Flange RF Adapter
Teruilai P/N : 2.4-KFKG datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-50GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel ,passivated | |
| Female center contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
