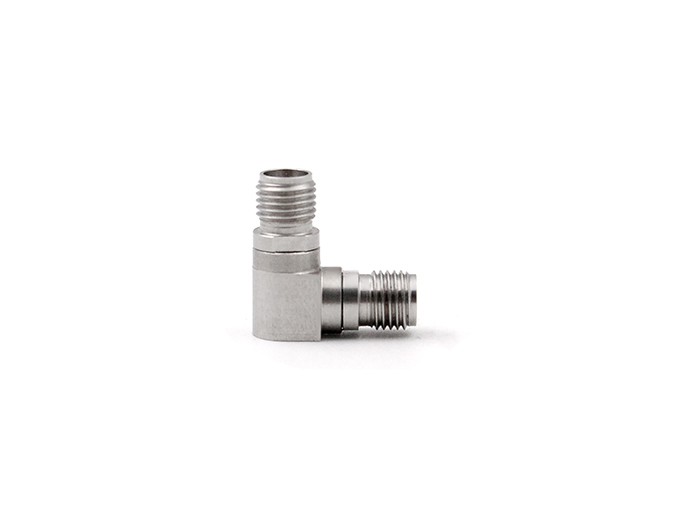

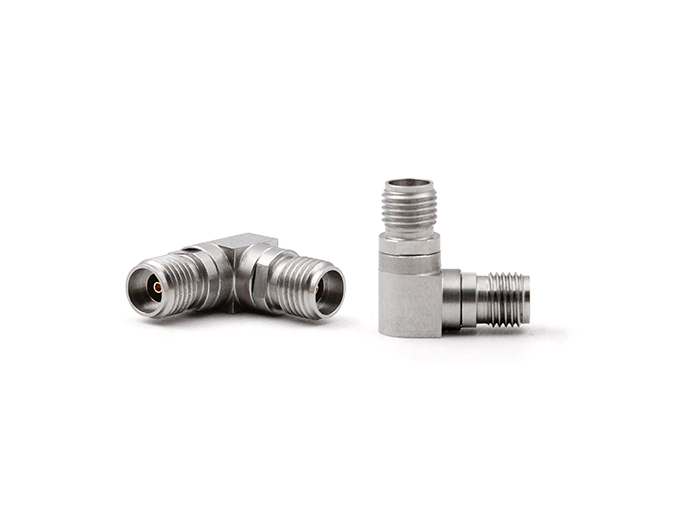

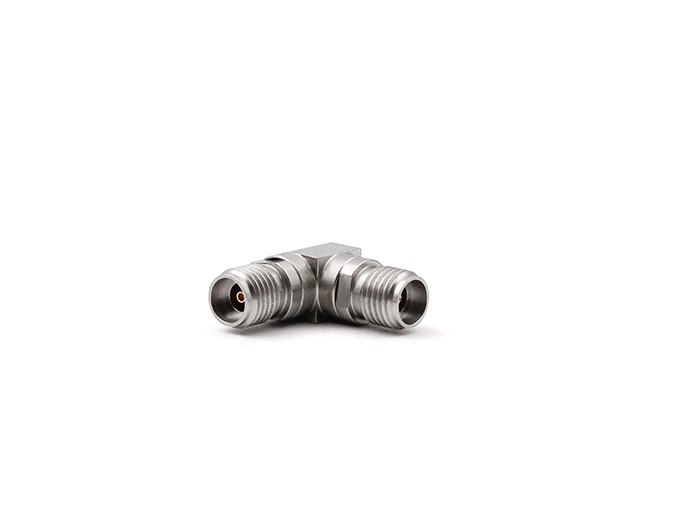

RF Adapter Stainless Steel 2.92 Female to Female Right Angle
Model: 2.92-KWKG
Product Introduction
2.92mm Precision Microwave Connectors Panel Mount also named K connector, developed from series SMA connector. 2.92mm Precision Microwave Connectors Panel Mount has the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.
Detailed Information
RF Adapter Stainless Steel 2.92 Female to Female Right Angle
Teruilai P/N: 2.92-KWKG
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧3000MΩ | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold |
| Insulators | PEI | |
