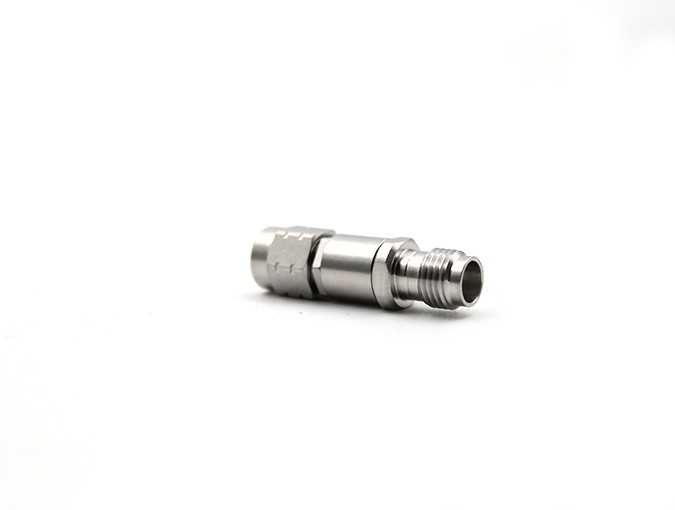

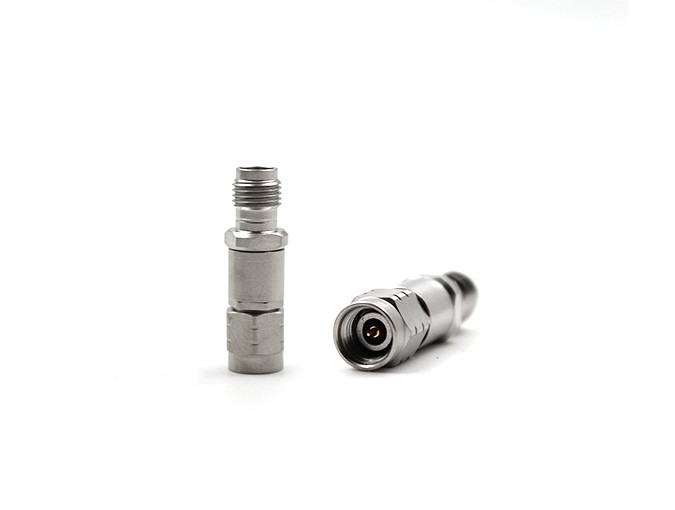

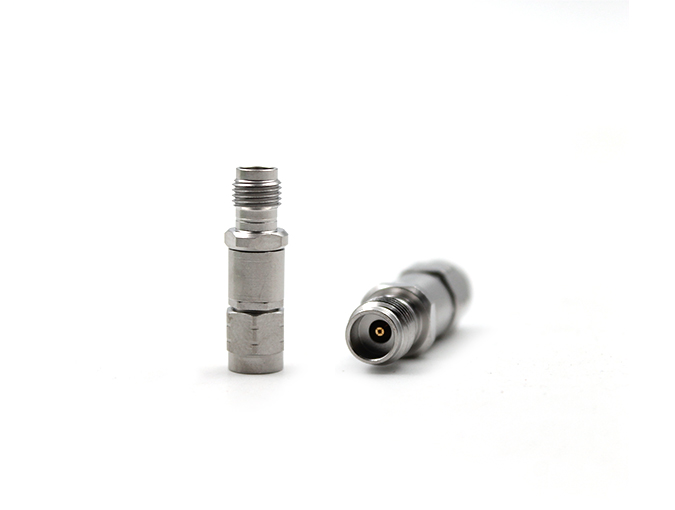

2.4mm female to 2.92 male RF Coaxial Adapter
Model: 2.4/2.92-KJG-F
Product Introduction
The adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . They are widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
2.4mm female to 2.92 male RF Coaxial Adapter
Teruilai P/N : 2.4/2.92-KJG-F Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel ,passivated | |
| Pin contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
