RF Coaxial Adapters · 2.92mm

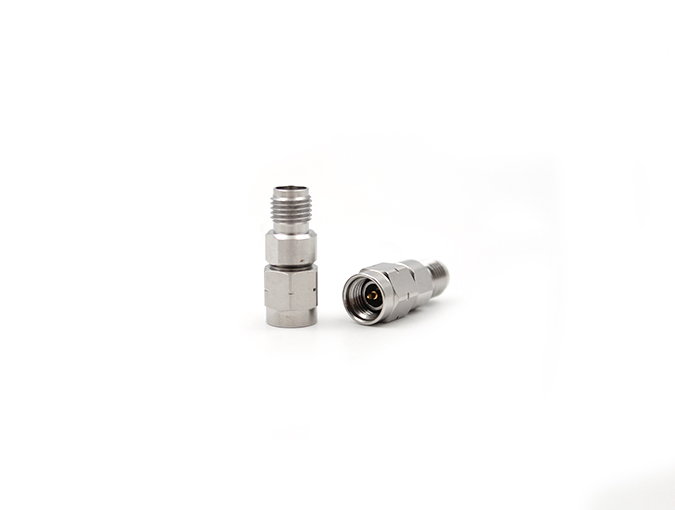

2.92mm Female to 3.5mm Male Precision RF Adapter
Model: 2.92/3.5-KJG
Product Introduction
The products have been widely used in the field of Testing System、Aerospace Field、 Microwave Weapon Systems.They have the advantages of small,light,high frequency and superior reliability,etc.The products have been widely used in the field of modern precision measure and micro-wave communication equipment.
Detailed Information
2.92mm Female to 3.5mm Male Precision RF Adapter
Teruilai P/N: 2.92/3.5-KJG Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-30GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel ,passivated | |
| Female center contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
