RF Coaxial Adapters · 2.92mm

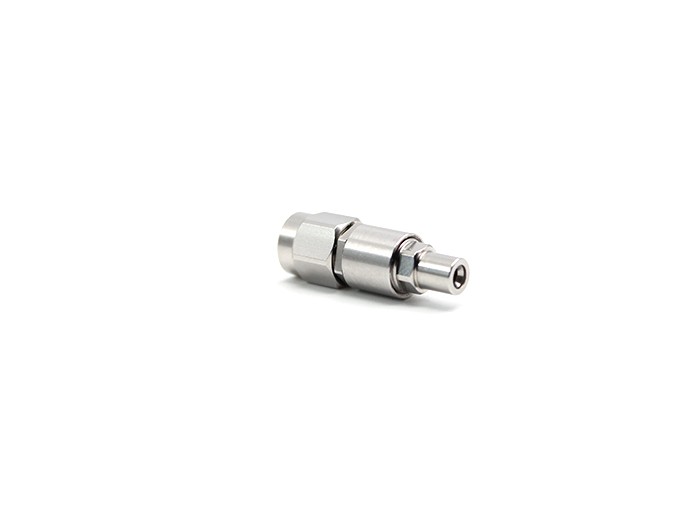

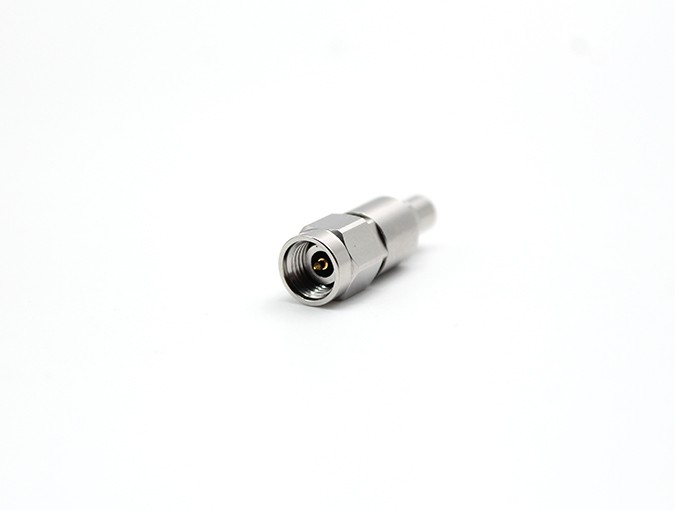

RF Adapter 2.92 Male to SSMP Male
Model: 2.92/SSMP-JJ-F
Product Introduction
2.92mm Precision Microwave Connectors have the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.
Detailed Information

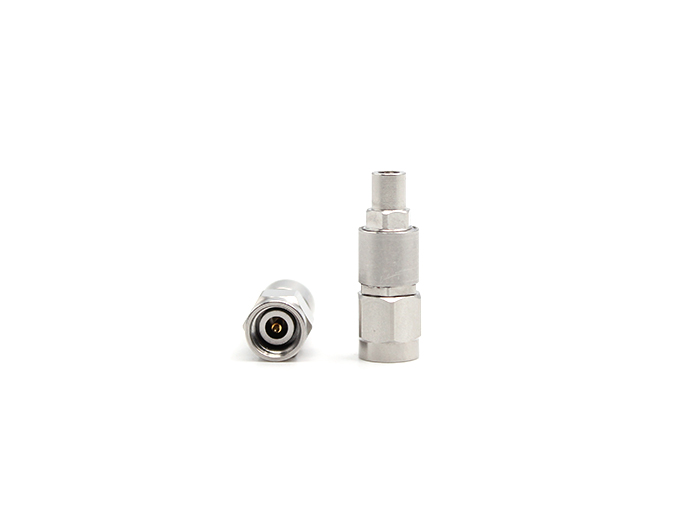

RF Adapter 2.92 Male to SSMP Male
Teruilai P/N : 2.92/SSMP-JJ-F
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-40GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | 1.20 | |
| Insertion Loss | 0.3dB max | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Female center contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
