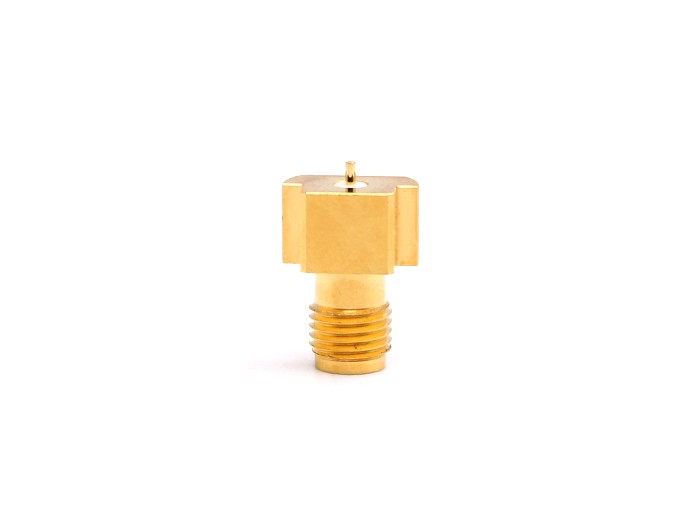

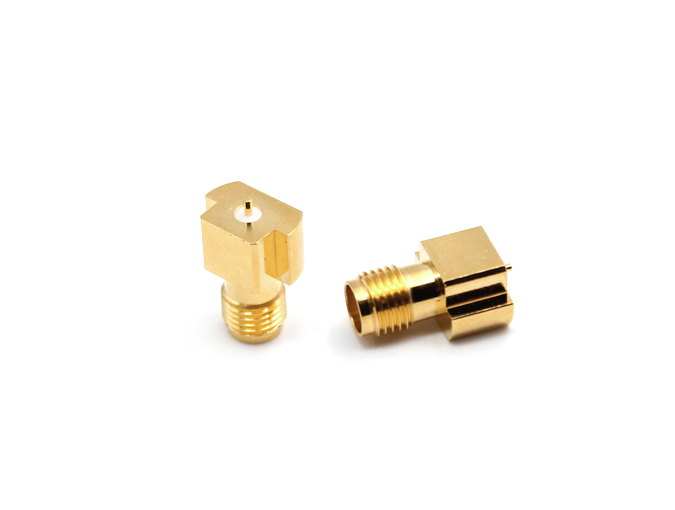

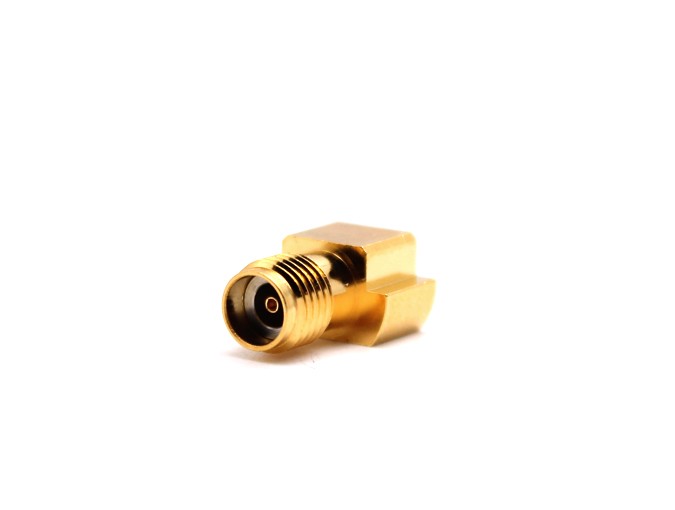

2.92mm Female PCB Mount RF Connector (TERUILAI P/N: 2.92-KHD) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Ultra-high Frequency Millimeter-wave Performance

• Supports DC-40GHz ultra-wide operating frequency range, covering mainstream millimeter-wave application bands

• Characteristic impedance of 50Ω, Voltage Standing Wave Ratio (VSWR) ≤1.30:1

• Extremely low signal transmission loss and excellent phase consistency, meeting the requirements of high-precision RF signal transmission

2.2 High-reliability Mechanical Design

• Durability of ≥500 mating cycles, suitable for frequent plugging and unplugging scenarios in testing and equipment connection

• Precision-machined metal structure ensures long-term mechanical stability and connection accuracy

• 2-hole flange fixing method for firm installation, compatible with various PCB board-level integrations

2.3 Excellent Electrical Performance

• Dielectric withstanding voltage ≥750V, insulation resistance ≥5000MΩ, outstanding electrical insulation performance

• Center conductor contact resistance ≤4.0mΩ, outer conductor contact resistance ≤2.0mΩ, ensuring low-impedance connection

• All-metal shielding structure effectively suppresses electromagnetic interference and guarantees signal integrity

2.4 Extreme Environmental Adaptability

• Operating temperature range: -45℃ ~ +125℃, covering extreme high and low temperature working conditions

• High-quality gold plating provides strong oxidation and corrosion resistance, adapting to complex industrial environments
