RF Coaxial Adapters · 1.85mm

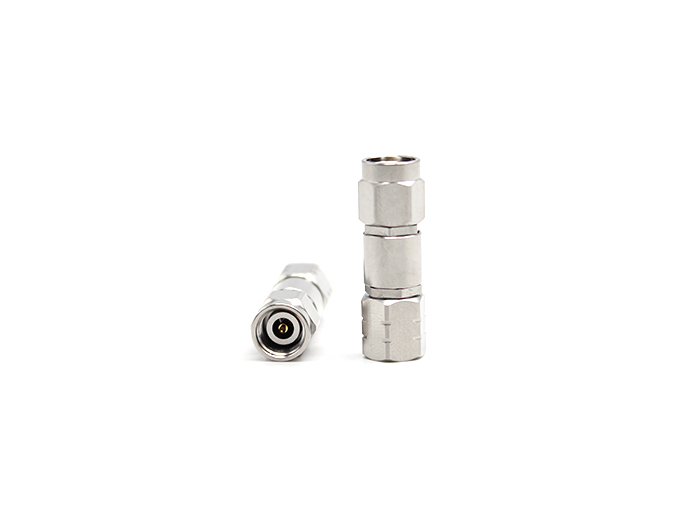

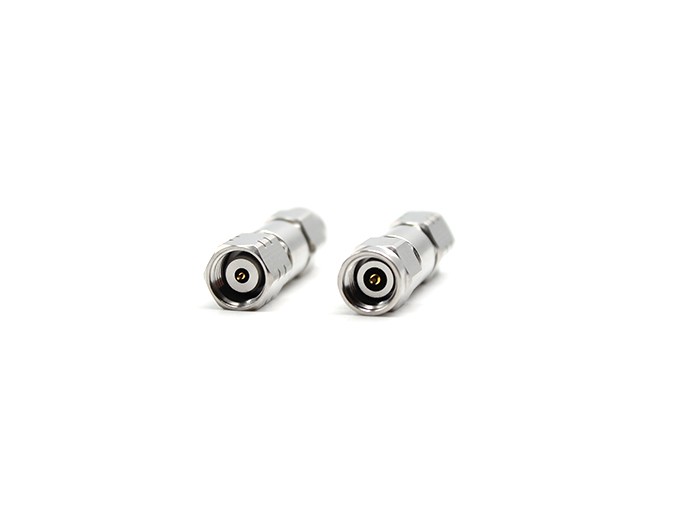

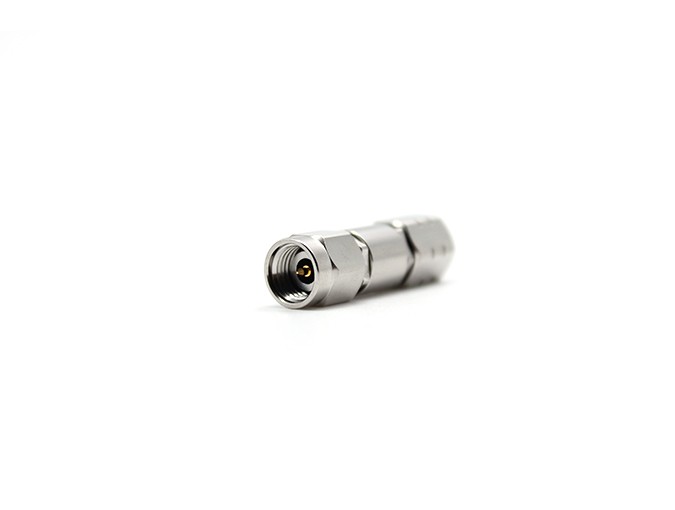

Precision Adapter Stainless steel 1.85 male to 2.92 male
Model: 1.85/2.92-JJ-F
Product Introduction
Series 1.85mm male to 2.92mm female milimeter wave RF Coaxial Adapter is an precision adapter, with the frequency up to DC 40Ghz. They are the guarantee for the connection between different seriels of RF coaxial connectors ,widely used in the modem precision measurement and microwave communication equipment.
Detailed Information
Precision Adapter Stainless steel 1.85 male to 2.92 male
Teruilai P/N: 1.85/2.92-JJ-F
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold |
| Insulators | PEI | |
