RF Coaxial Adapters · 1.85mm

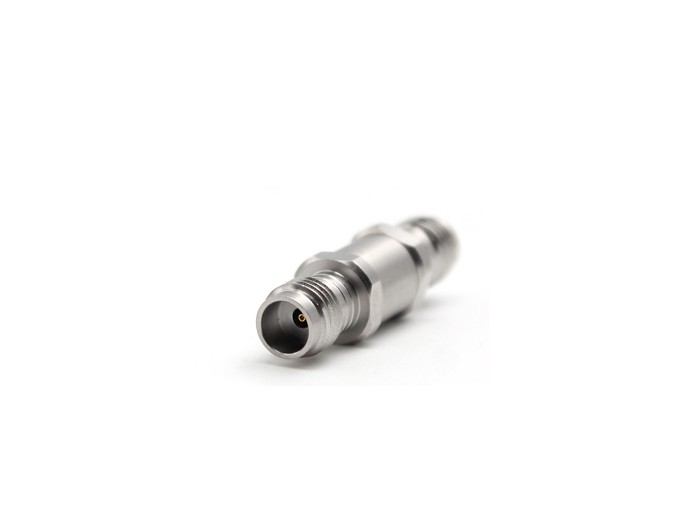

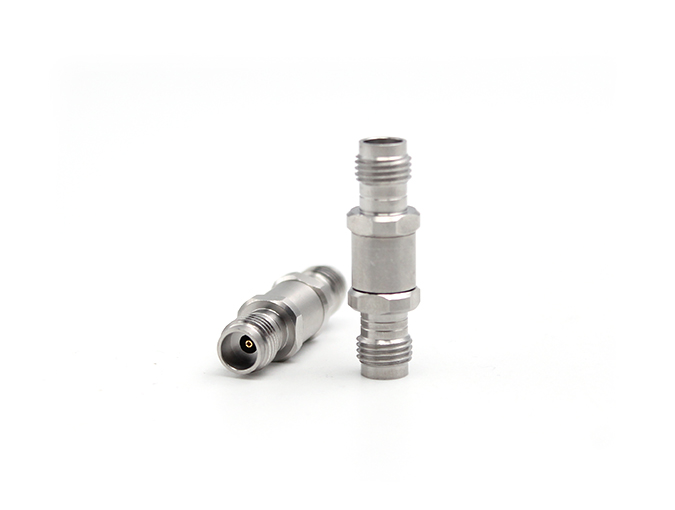

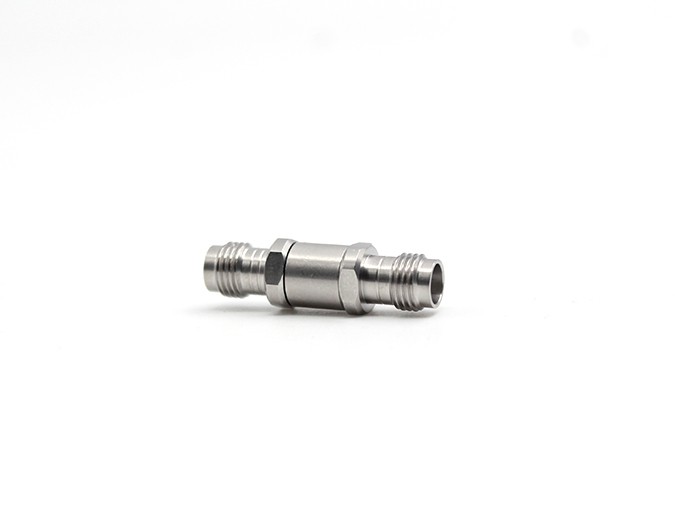

Precision Adapter 2.4 Female to 1.85 Female
Model: 1.85/2.4-KKG
Product Introduction
1.85mm milimeter wave connector adapters are the guarantee for the connection between different seriels of RF coaxial connectors. Adapters have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz. They are widely used in testing system, aerospace field, microwave weapon systems.
Detailed Information
Precision Adapter 2.4 Female to 1.85 Female
Teruilai P/N: 1.85/2.4-KKG Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-50GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.3:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
