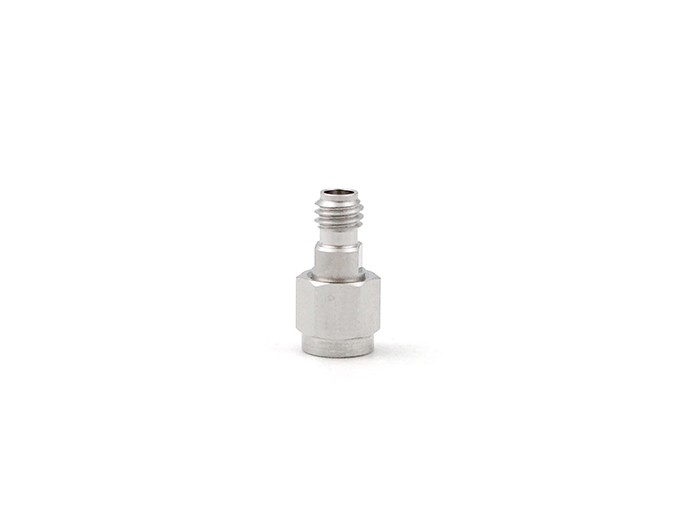

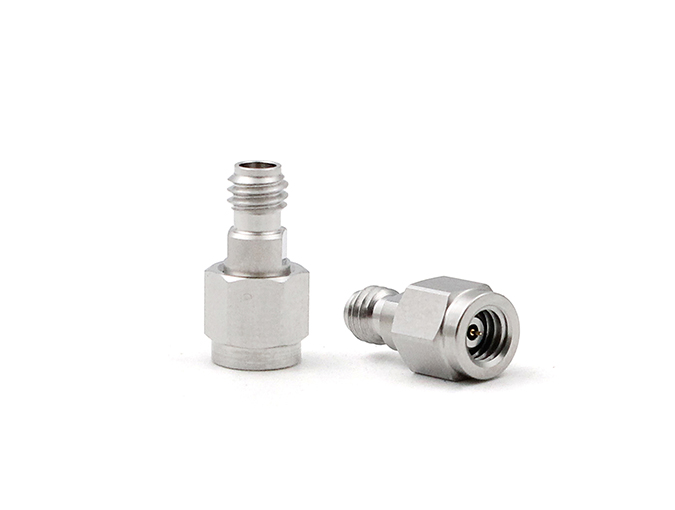

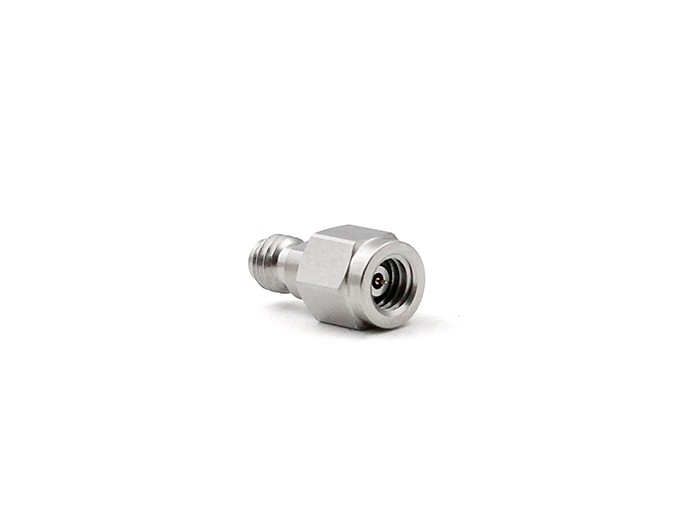

1.0mm male to 1.0 female RF Coaxial stainless steel Adaptor
Model: 1.0-JKG
Product Introduction
Detailed Information
1.0mm male to 1.0 female RF Coaxial stainless steel Adaptor
Teruilai P/N:1.0-JKG
| Electrical data | Requirments | |
| Frequency range | DC-110GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| VSWR | ≦1.50 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
