RF Coaxial Adapters · 1.0mm

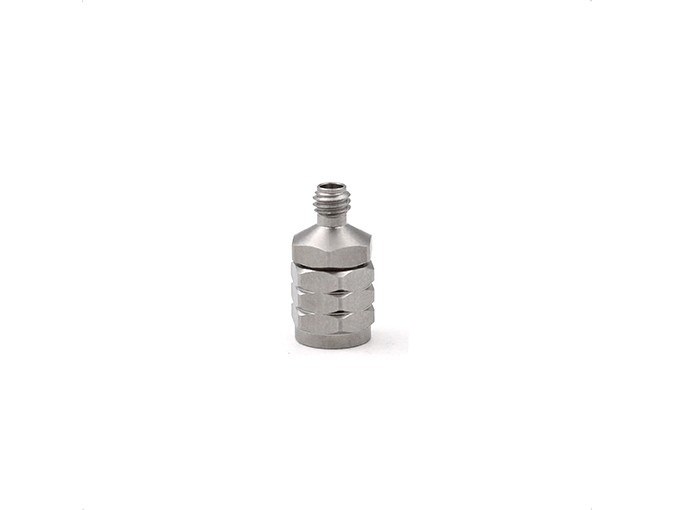

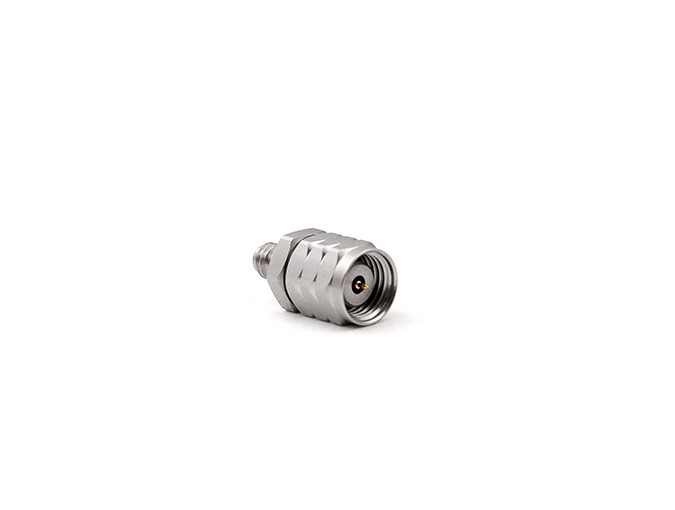

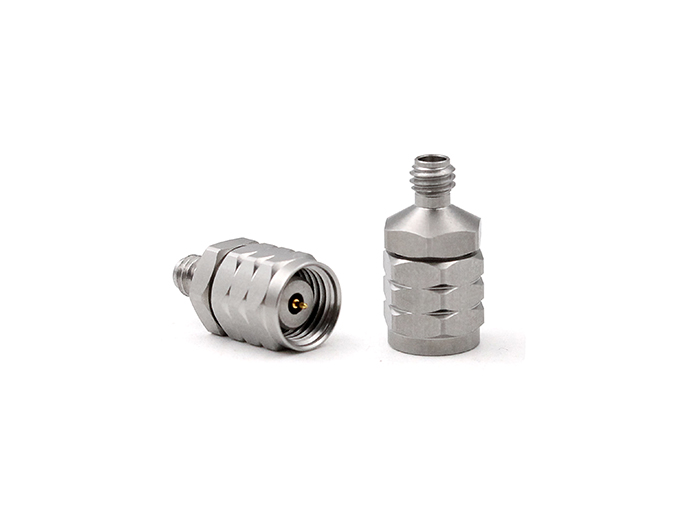

Precision Adapter 1.85 Female to 1.0 male
Model: 1.0/1.85-KJG
Product Introduction
1.85mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz. They are widely used in testing system, aerospace field, microwave weapon systems.
Detailed Information
Precision Adapter 1.85 Female to 1.0 male
Teruilai P/N: 1.0/1.85-KJG
| Electrical data | Requirments | |
| Frequency range | DC-65GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
