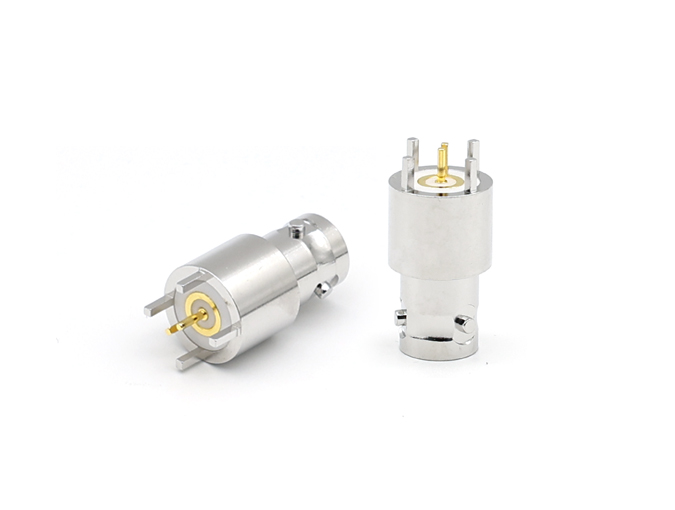

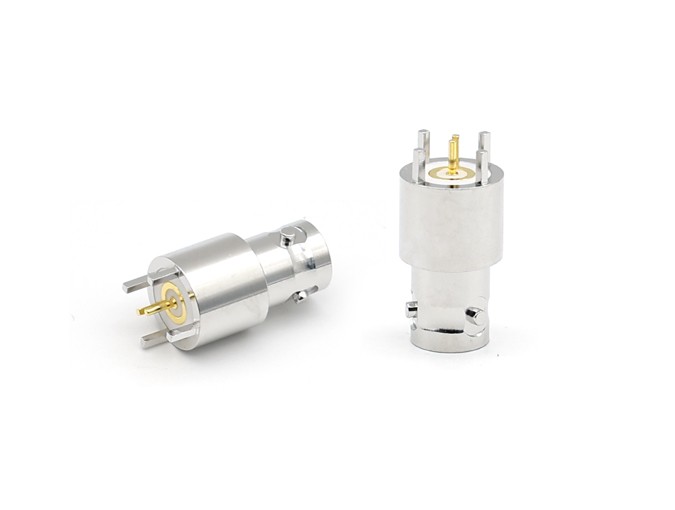

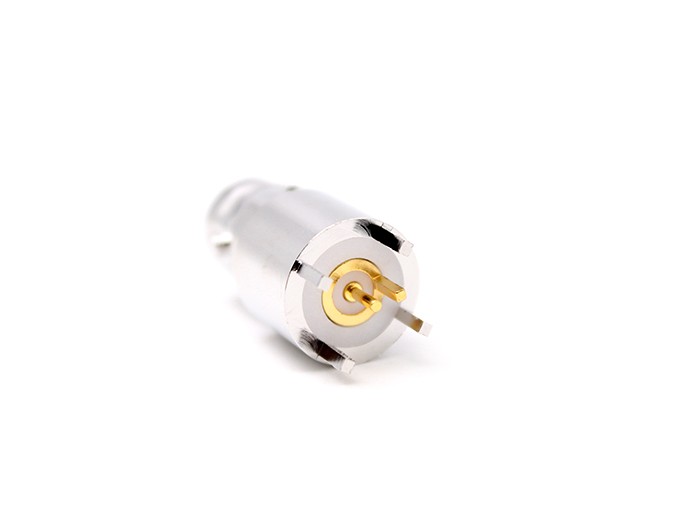

TRB Female PCB Mount RF Connector (TERUILAI P/N: TRB-KHD) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Superior High Shielding Performance

• Features an optimized all-metal shielding structure, providing excellent electromagnetic interference suppression capability

• Effectively blocks external electromagnetic interference and prevents internal signal leakage, ensuring stable signal transmission in complex electromagnetic environments

• Ideal for high-reliability anti-jamming application scenarios

2.2 Quick Bayonet Connection Design

• Unique bayonet coupling mechanism enables tool-free quick insertion and removal

• Significantly improves installation and maintenance efficiency, suitable for frequent operation scenarios

• Ensures stable and secure mechanical and electrical connection after locking

2.3 Convenient PCB Mount Structure

• PCB board-level mounting design enables direct soldering and fixation on printed circuit boards

• Compact size saves valuable PCB space, ideal for high-density electronic equipment integration

• Realizes reliable signal connection between external RF cables and internal circuit boards

2.4 High Electrical Reliability

• Dielectric withstanding voltage of 1200V, insulation resistance ≥5000MΩ (corrected from document typo "5000mΩ")

• Outer conductor contact resistance ≤0.5mΩ, achieving ultra-low-loss signal transmission

• High-quality gold plating on contact parts ensures long-term stable electrical performance

2.5 Excellent Durability & Environmental Adaptability

• Durability of ≥500 mating cycles, suitable for long-term repeated use

• Operating temperature range: -45℃ ~ +125℃, adapting to various industrial and military working environments

• Corrosion-resistant plating ensures reliable performance even in harsh conditions
