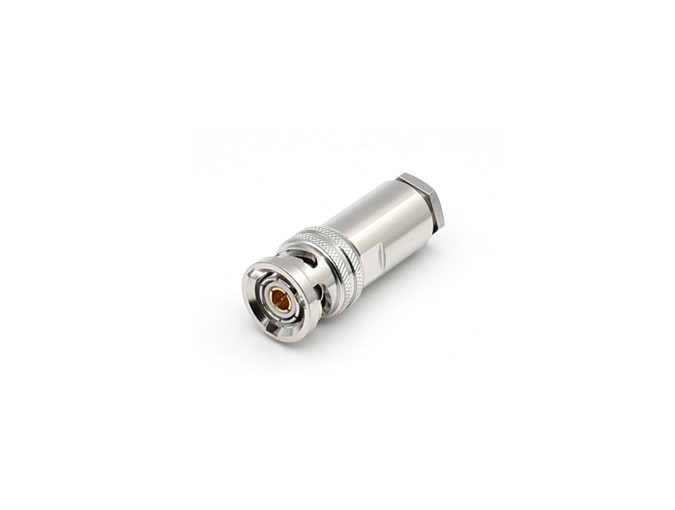

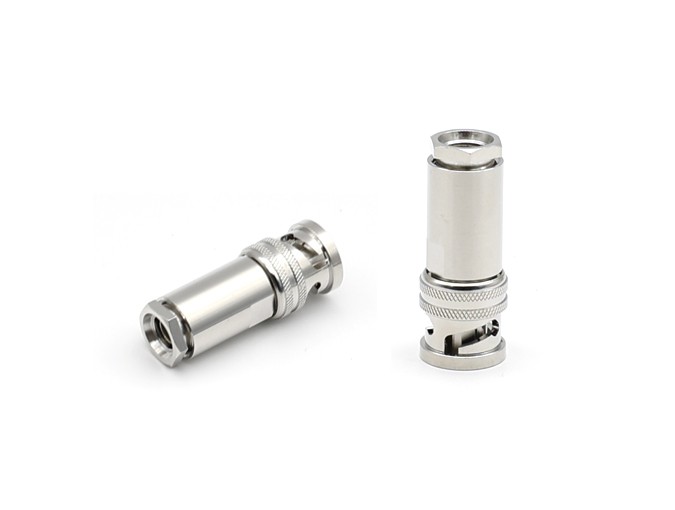

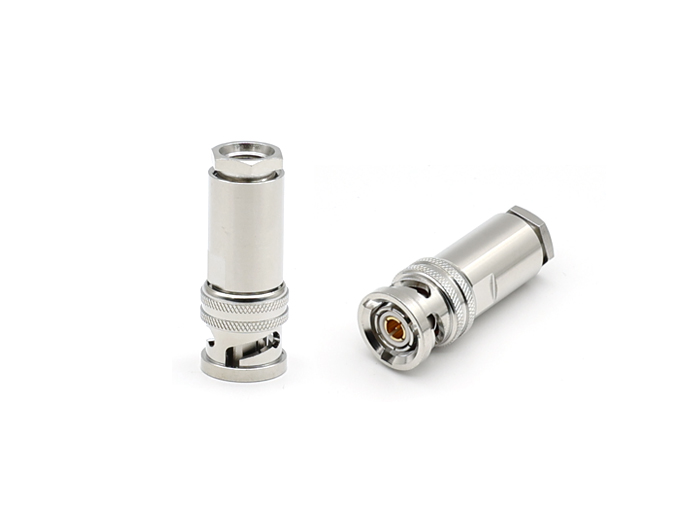

TRB Male RF Connector for TRC-50-2 Cable (TERUILAI P/N: TRB-J4A) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Superior High Shielding Performance

• Features an optimized all-metal shielding structure, providing industry-leading electromagnetic interference suppression capability

• Effectively blocks external electromagnetic interference and prevents internal signal leakage, ensuring stable signal transmission in complex electromagnetic environments

• Ideal for high-reliability anti-jamming application scenarios in military and industrial fields

2.2 Quick Bayonet Connection Design

• Unique bayonet coupling mechanism enables tool-free quick insertion and removal in seconds

• Significantly improves installation and maintenance efficiency, suitable for frequent operation scenarios

• Ensures stable and secure mechanical and electrical connection after locking

2.3 Optimized Cable Matching

• Precision-machined interface ensures perfect compatibility and impedance matching with TRC-50-2 coaxial cables

• Delivers consistent and reliable signal transmission performance throughout the entire operating frequency range

2.4 High Electrical Reliability

• Dielectric withstanding voltage up to 5.0KV, ensuring excellent high-voltage resistance performance

• Insulation resistance ≥5000MΩ (corrected from document typo "5000mΩ"), providing reliable electrical insulation

• Ultra-low outer conductor contact resistance ≤0.5mΩ, achieving minimal signal loss

2.5 Excellent Durability & Environmental Adaptability

• Durability of ≥500 mating cycles, suitable for long-term repeated use

• Operating temperature range: -45℃ ~ +125℃, adapting to various industrial and military working environments

• High-quality Suco plating provides strong oxidation and corrosion resistance
