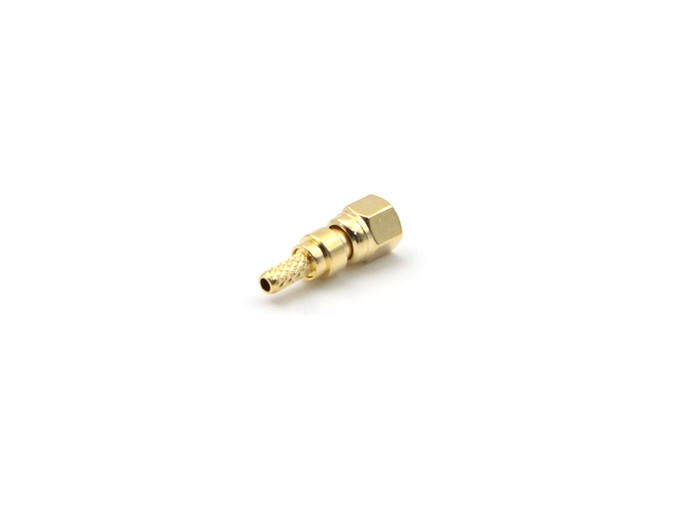

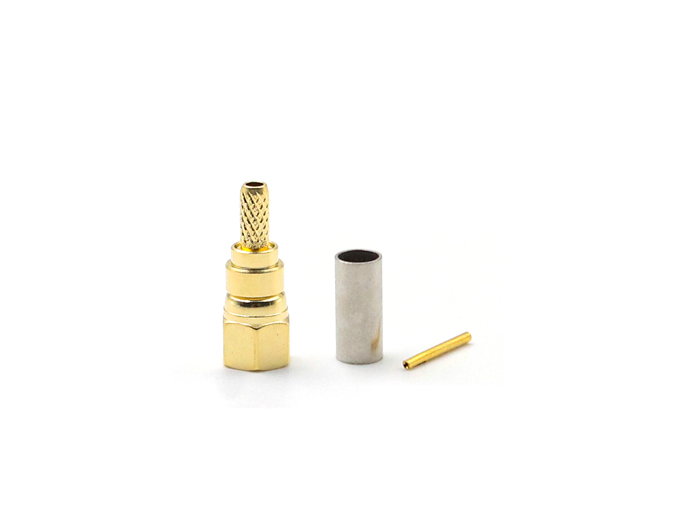

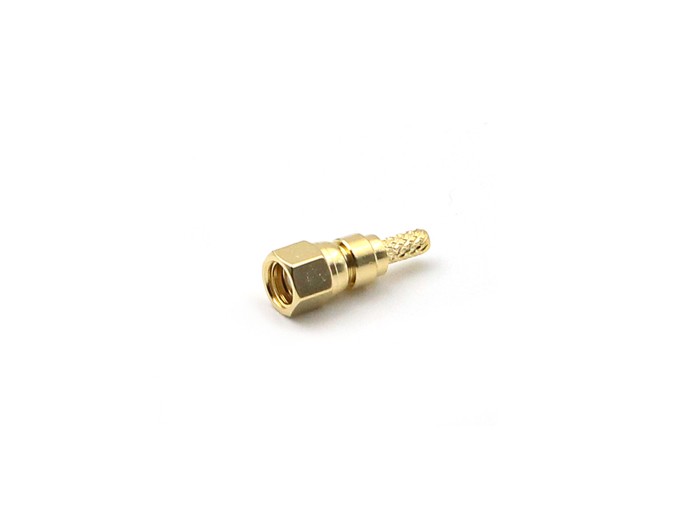

RF Connector SMC Female for RG316 Cable crimp
Model: SMC-K3Y
Product Introduction
Detailed Information
RF Connector SMC Female for RG316 Cable crimp
Teruilai P/N: SMC-K3Y
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-3GHZ | |
| Dielectric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.25:1 | |
| .Center conductor | ≦3.0mΩ | |
| .Outer conductor | ≦2.0mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold-plated |
| Pin contacts | Beryllium-Copper | Gold-plated |
| Insulators | Teflon | |
