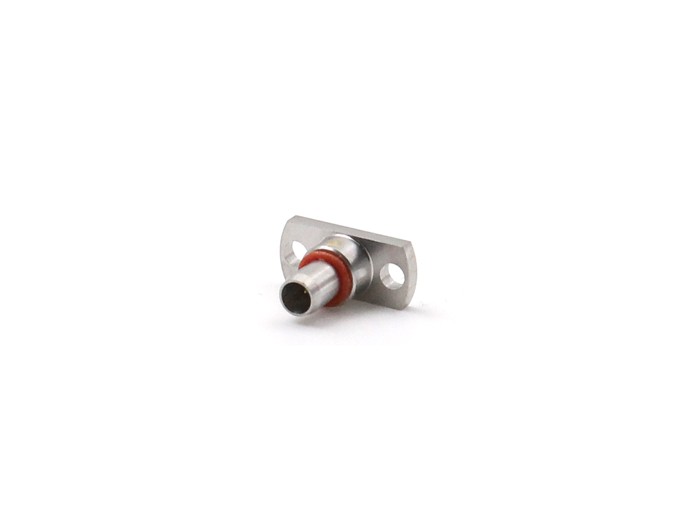

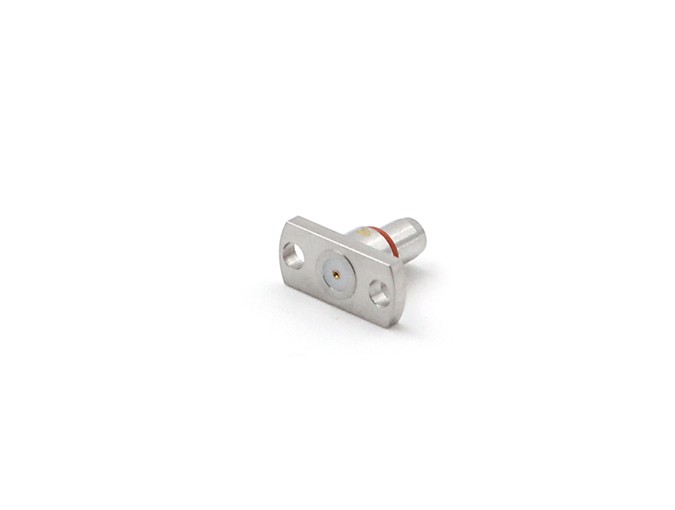

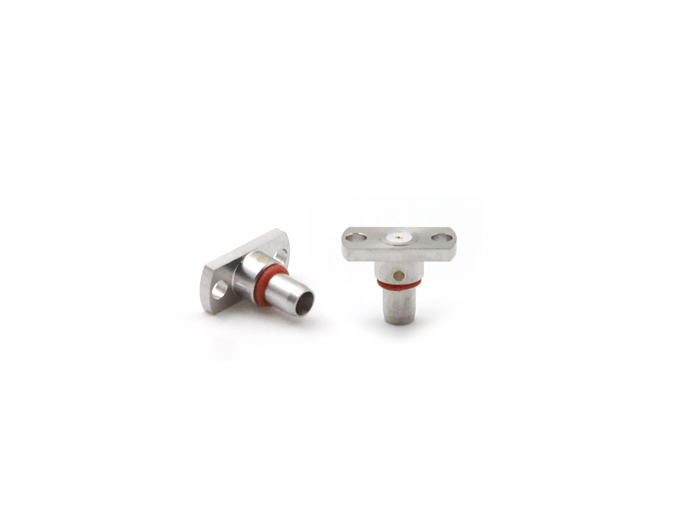

SBMA Male Flange Mount Apply for 0.38 Dia. pin
Model: SBMA-JFD0.38G
Product Introduction
Type BMA is snap-on coupling miniature RF Coaxial Connector , which are specially designed for blind mate applications in low power microwave comunication system , military and civil data microwave communication system where high reliablity and easy assembly will be required .
Detailed Information
SBMA Male Flange Mount Apply for 0.38 Dia. pin
Teruilai P/N:SBMA-JFD0.38G
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Dieletric withstanding voltage | 750V | |
| Working voltage | 750Vms | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦3mΩ | |
| .Outer conductor | ≦2mΩ | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Brass | Gold |
| Gasket | Silicon rubber | |
