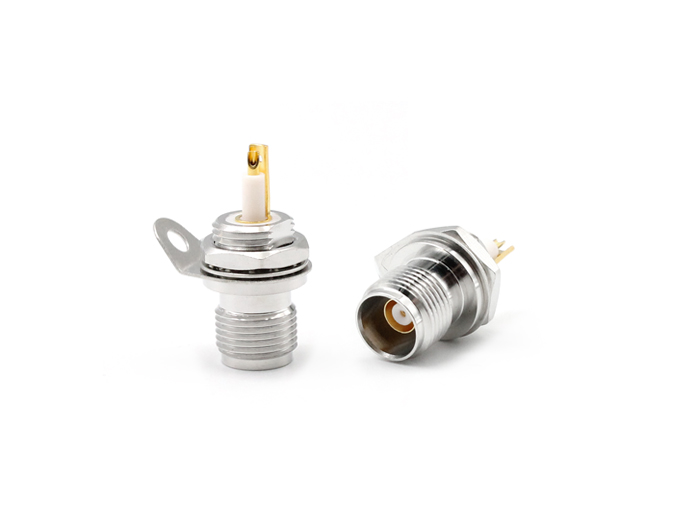

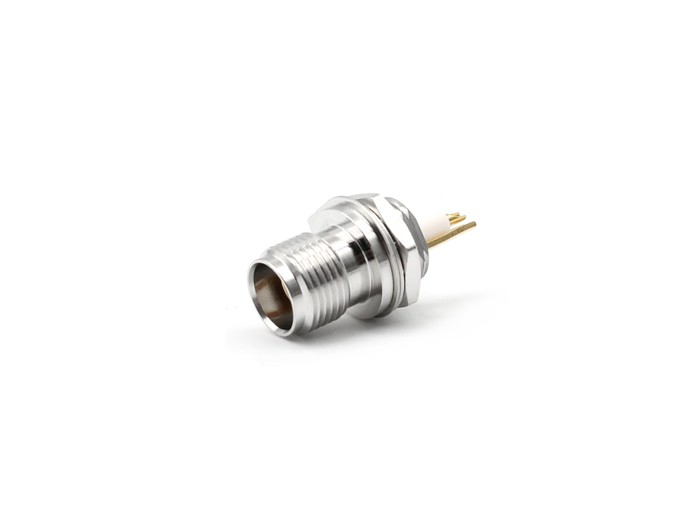

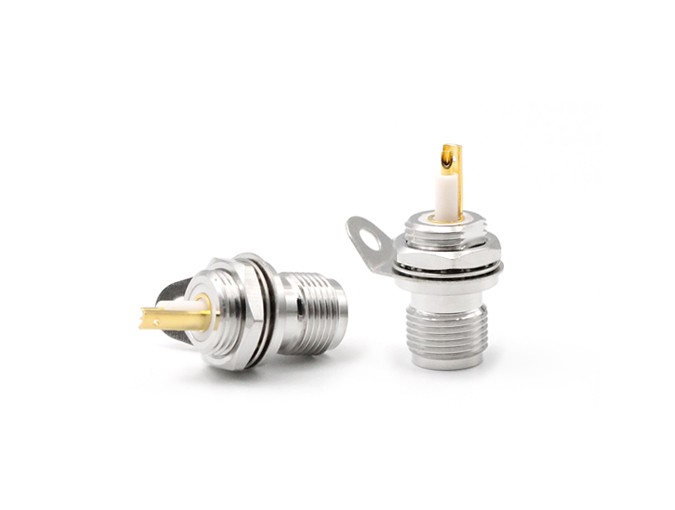

TRT female bulkhead RF Connector Terminal
Model: TRT-KYD1
Product Introduction
Series TRT is one kind of bayonet coupling connector with the advantage of high shielding performances . They are widely used in communication equipment and modern anti-jamming weapon system.
Detailed Information
TRT female bulkhead RF Connector Terminal
Teruilai P/N:TRT-KYD1
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-500Mhz | |
| Dieletric withstanding voltage | 1200V | |
| Insulation Resistance | ≧5000mΩ | |
| Contact resistance | ||
| .Center conductor | ≧2 mΩ | |
| .Outer conductor | ≦0.5milli Ω | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel-plated |
| Pin contacts | Brass | Gold |
| Insulators | PTFE | |
