RF Coaxial Connectors · RPSMA

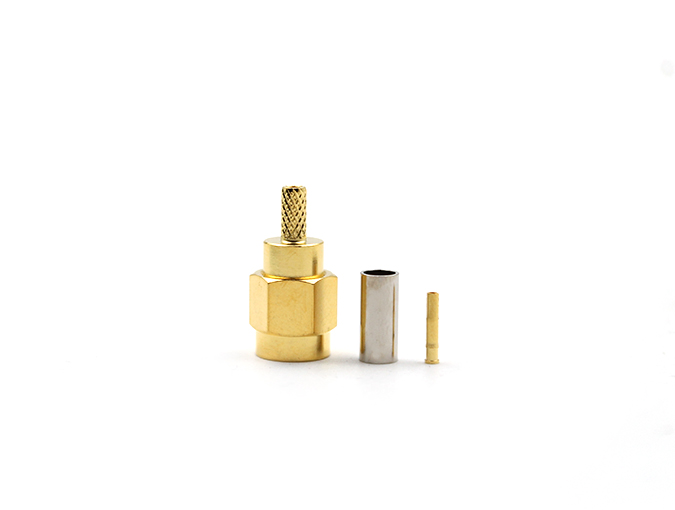

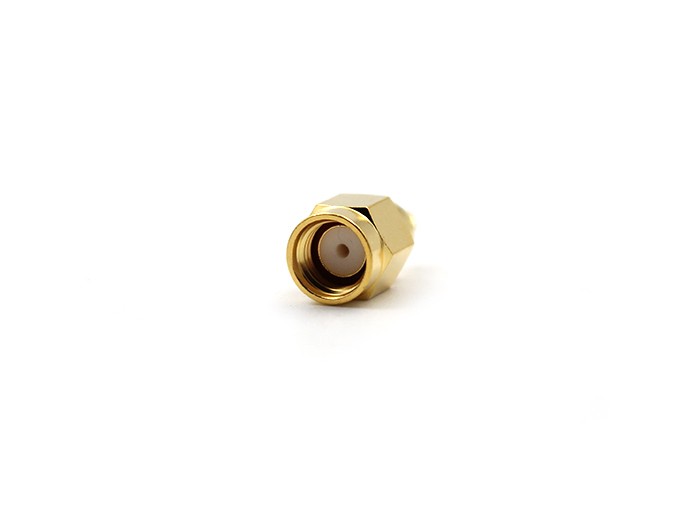

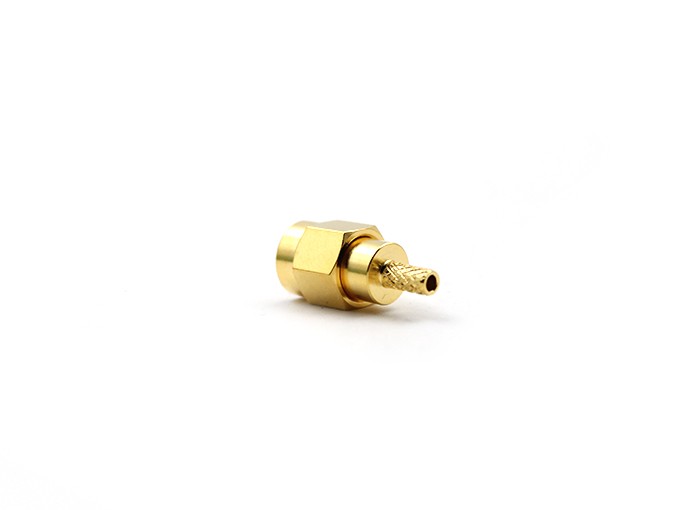

reversed polarity SMA male for RG316 cable RF Connector
Model: RPSMA-K3B
Product Introduction
SMA is one kind of coaxial precision connectors up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.
Detailed Information
Reversed Polarity SMA male for RG316 cable RF Connector
Teruilai P/N: RPSMA-K3B
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | 1000V(volts RMS) | |
| Center contact resistance | ≦3mΩ | |
| Outer contact resistance | ≦2mΩ | |
| Insulation resistance | ≧5000MΩ | |
| VSWR | ≦1.20 | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| RoHs Compliant | ||
| Durability(matings) | >500 cycles | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold Plated |
| Insulators | Teflon | |
| Contact Pin | Beryllium Copper | Gold Plated |
