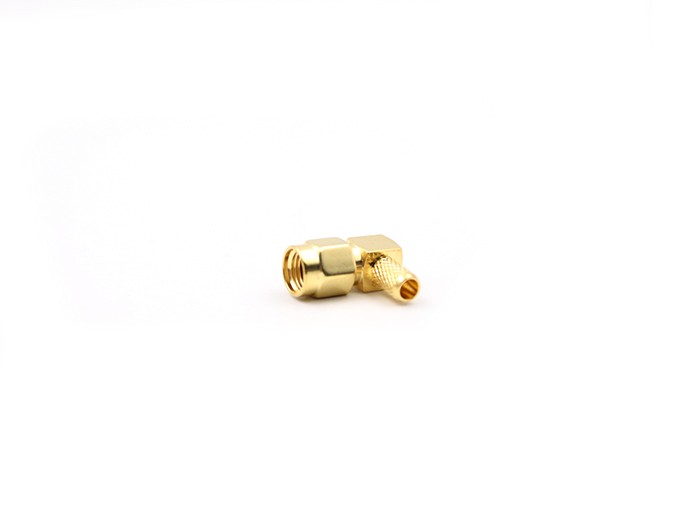

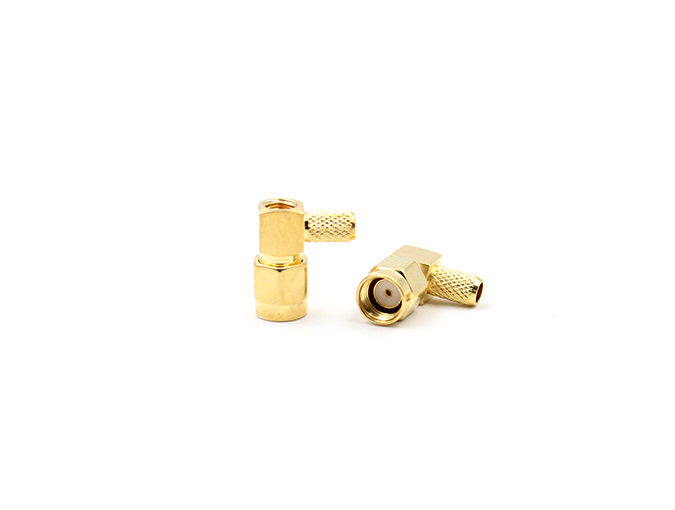

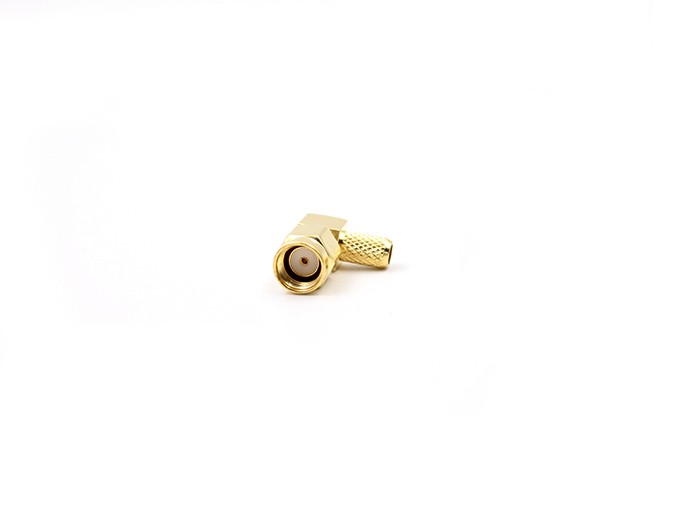

RF Connector RPSMA Male Right angel For LMR200 Cable
Model: RPSMA-KW200
Product Introduction
SMA male right angle Micro RF Coaxial Connector for 086 cable sky window is one kind of coaxial precision connector up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is small size, high mechanical strength, high durability, and optimum electrical properties. They can be widely used in the field of micro-wave communication, spaceflight, and navigation, instrument and etc.
Detailed Information
RF Connector RPSMA Male Right angel For LMR200 Cable
Teruilai P/N: RPSMA-KW200
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| VSWR | 1.20:1 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
