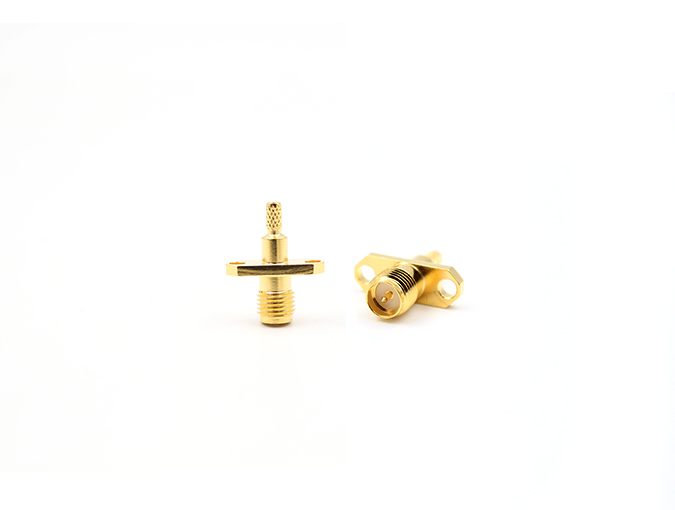

RF Connector RP SMA Female FLange for RG316 Cable, Crimp
Model: RPSMA-JF3CYA
Product Introduction
Detailed Information

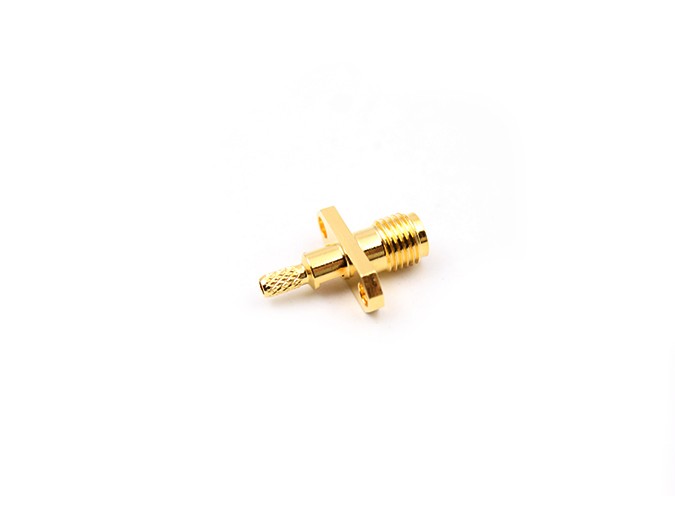

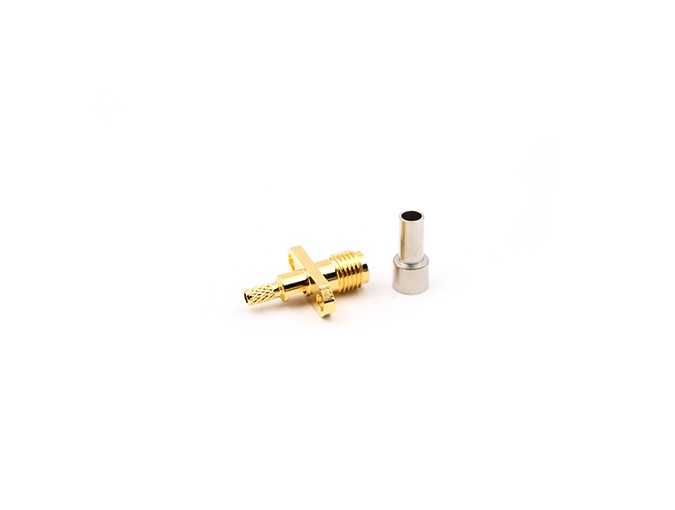

RF Connector RP SMA Female FLange for RG316 Cable, Crimp
Teruilai P/N:RPSMA-JF3CYA
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| VSWR | 1.20:1 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
