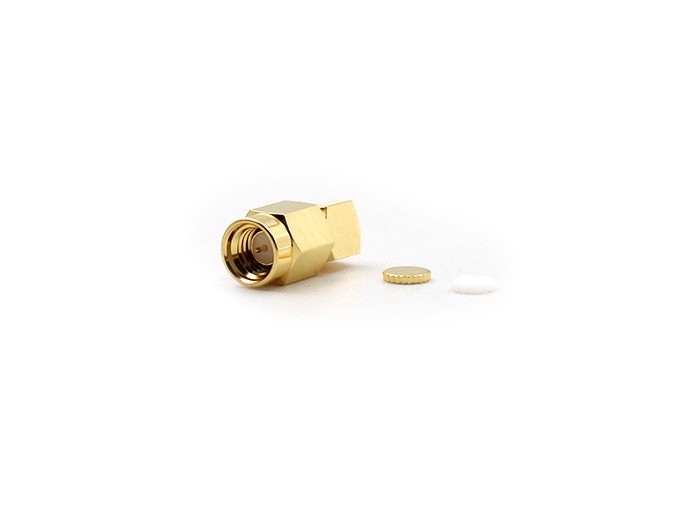

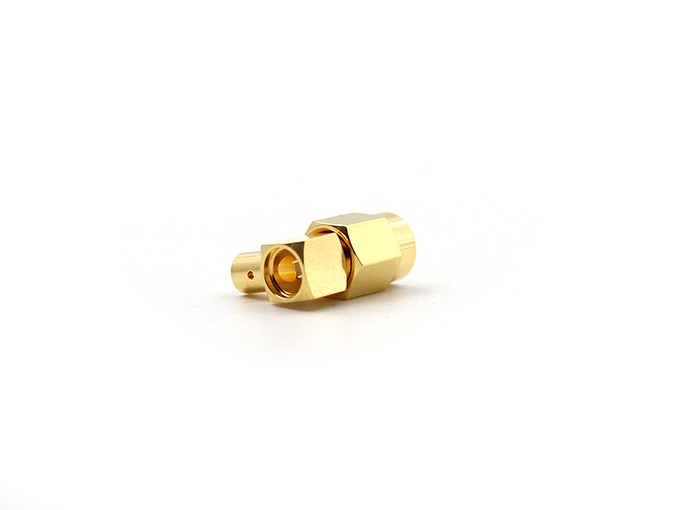

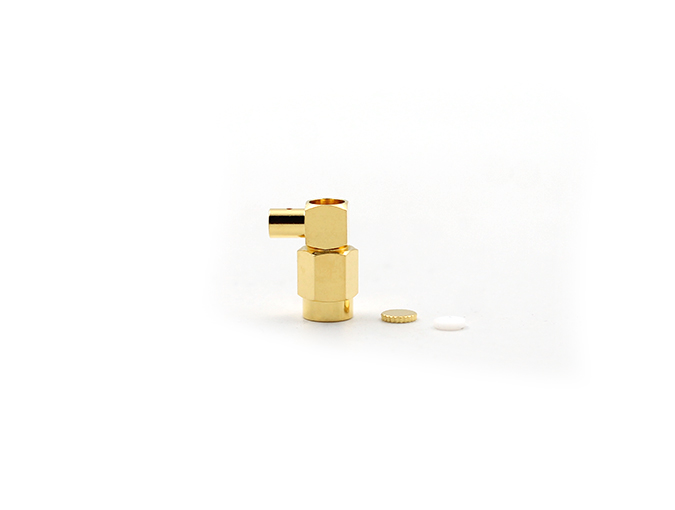

RF Connector SSMA Male R/A for .086/RG405 cable
Model: SSMA-JWB2-F
Product Introduction
This 50 Ohm SSMA Connectors is precision manufactured to RF components industry specifications.
Detailed Information
RF Connector SSMA Male R/A for .086/RG405 cable
Teruilai P/N: SSMA-JWB2-F
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦4MΩ | |
| Outer Contact Resistance | ≦2.5MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| VSWR | ≦1.20 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -40℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Gasket | Silicon | |
| Insulators | Teflon | |
