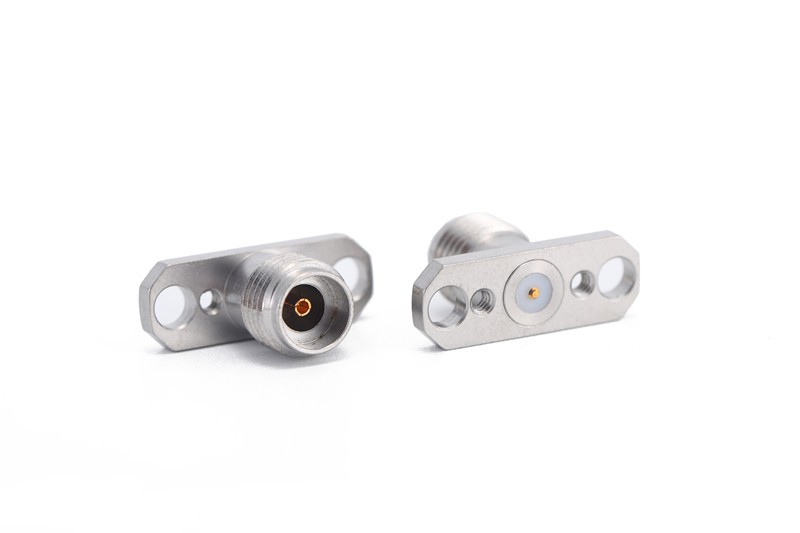

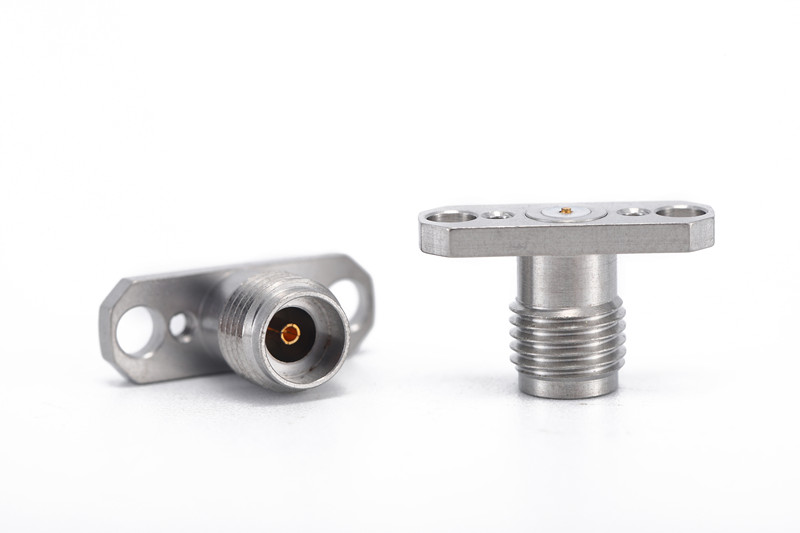

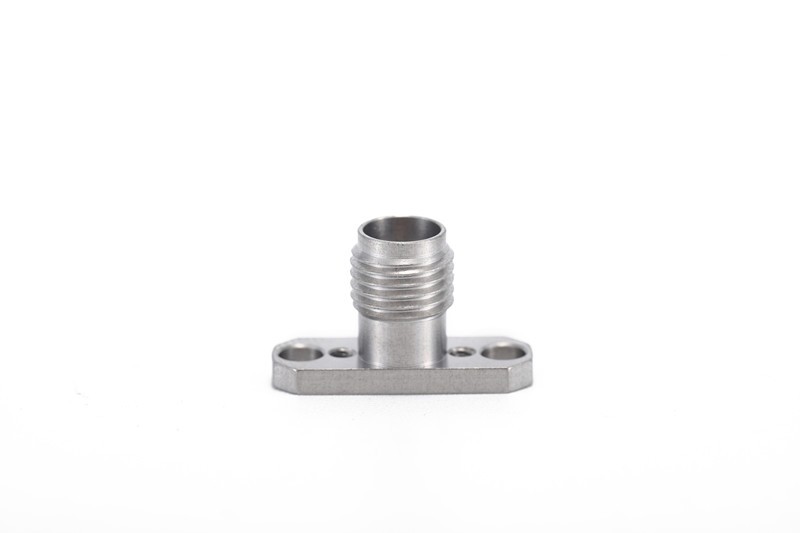

2.92mm Female Flange Connector Terminal
Model: 2.92-KFD5G
Product Introduction
Micro RF Coaxial Connector 2.92mm female (jack) 2 holes flange millimeter-wave connector. They have the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.
Detailed Information
2.92mm Female Flange Connector Terminal
Teruilai P/N:2.92-KFD5G Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦4.0mΩ | |
| .Outer conductor | ≦2.0mΩ | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel (Su303) | passivated |
| Pin contacts | Beryllium-Copper | gold-plated |
| Insulators | PEI | |
