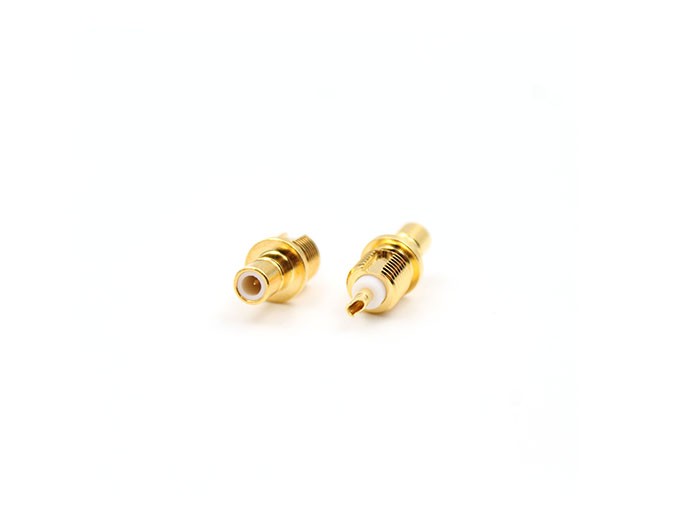

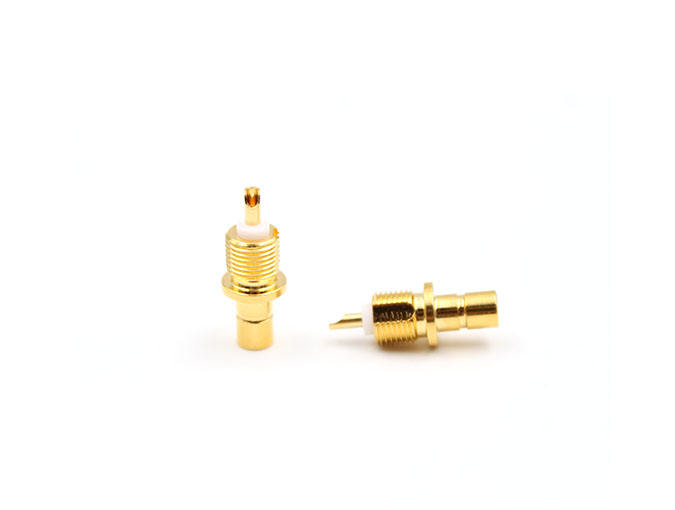

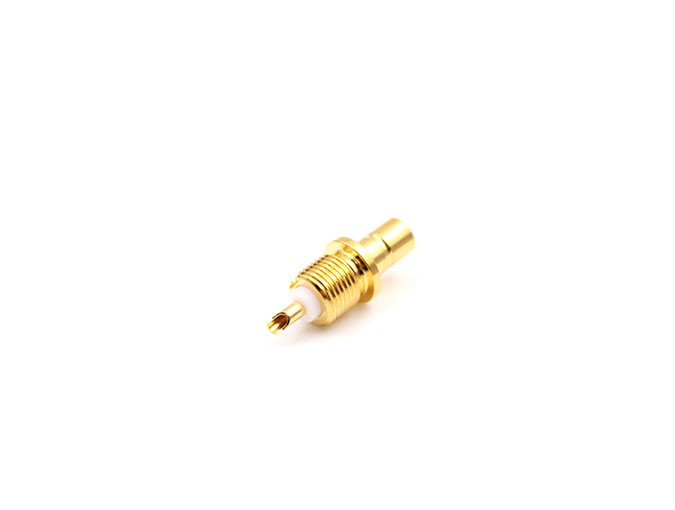

RF Connector SMB Male Bulkhead
Model: SMB-JYD3
Product Introduction
SMB is one kind of coaxial precision connectors up to 4GHZ Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.
Detailed Information
RF Connector SMB Male Bulkhead
Teruilai P/N: SMB-JYD3
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦6MΩ | |
| Outer Contact Resistance | ≦1MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| VSWR | ≦1.20 | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Berylliun copper | Gold |
| Insulators | Teflon | |
