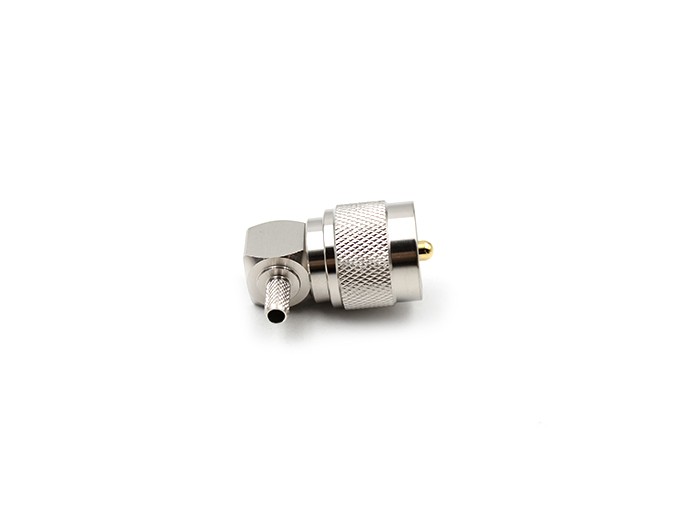

RF Connector UHF Male Right Angle for 5D-FB Cable, Crimp
Model: UHF-JW5DY
Product Introduction
Series UHF is connectors with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground control apparatus.
Detailed Information
RF Connector UHF Male Right Angle for 5D-FB Cable, Crimp
Teruilai P/N : UHF-JW5DY
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | 5000MΩ | |
| Center Contact Resistance | 1.0MΩ | |
| Outer Contact Resistance | 0.2MΩ | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Contact Pin | Brass | Gold |
| Coupling nut | Brass | Nickel |
| Crimp ferrules | Copper | Nickel |
| Insulators | Teflon | |
