RF Coaxial Connectors · UHF

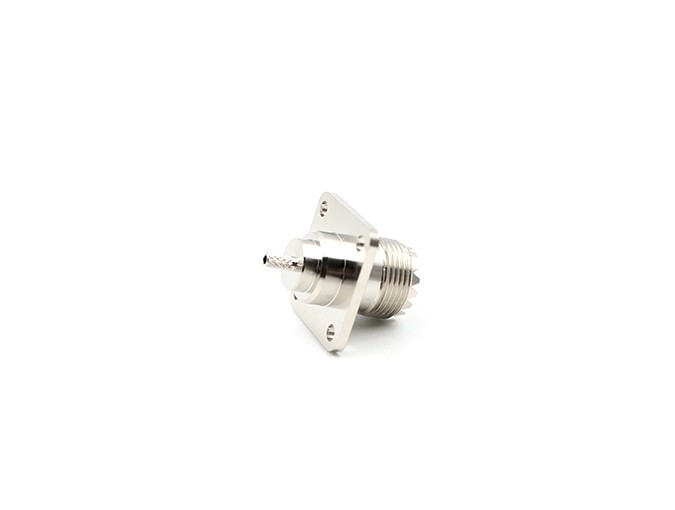

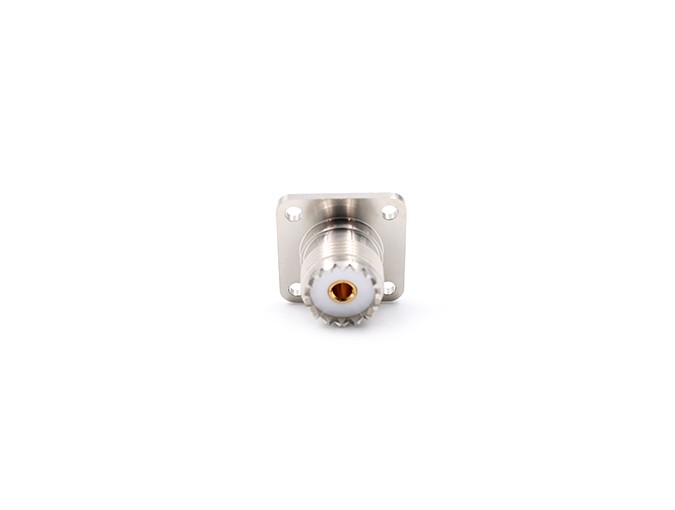

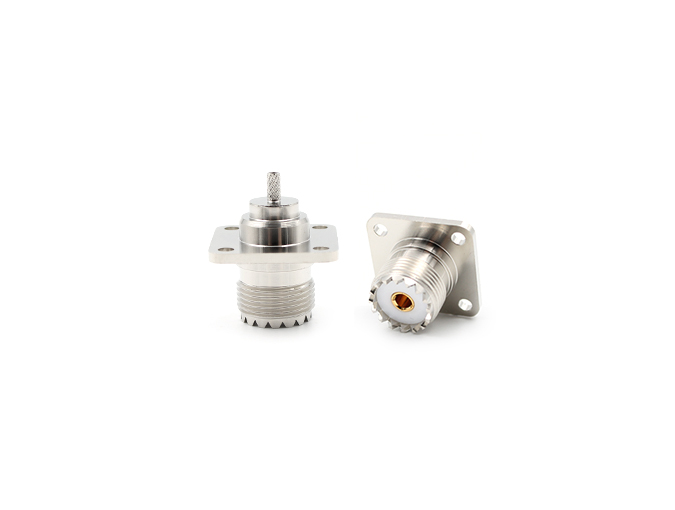

UHF Female Flange Connector for RG316 Cable, Crimp
Model: UHF-KF3Y
Product Introduction
Series UHF is connectors with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground control apparatus.
Detailed Information
UHF Female Flange Connector for RG316 Cable, Crimp
Teruilai P/N : UHF-KF3Y Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | 5000MΩ | |
| Center Contact Resistance | 5MΩ | |
| Outer Contact Resistance | 5MΩ | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Contact Pin | Brass | Gold |
| Insulators | Teflon | |
