RF Coaxial Connectors · UHF

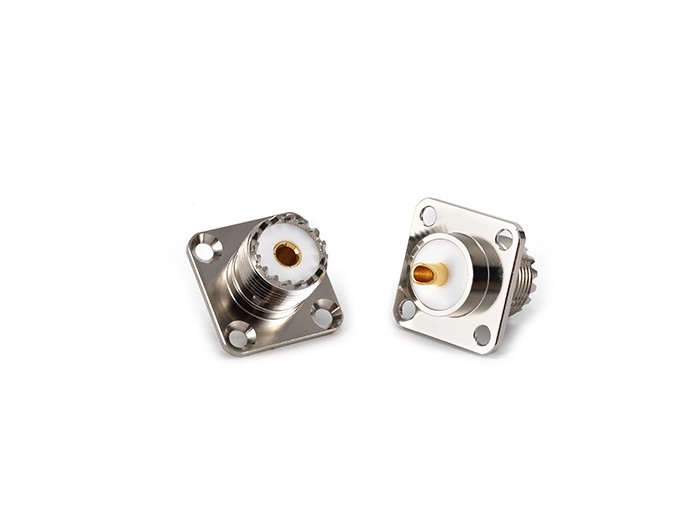

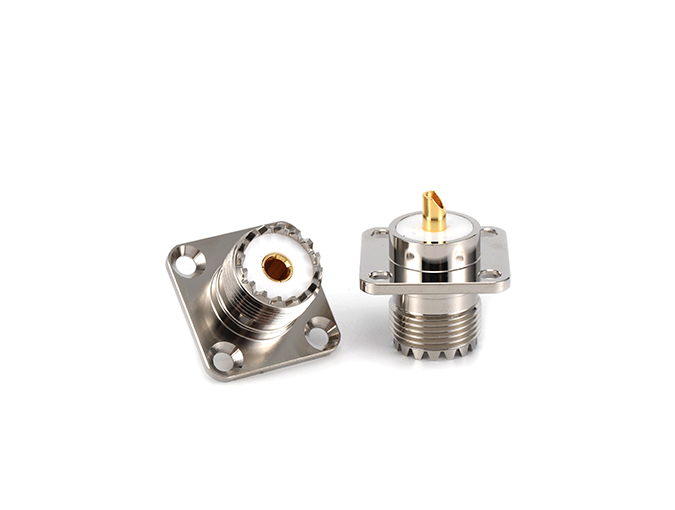

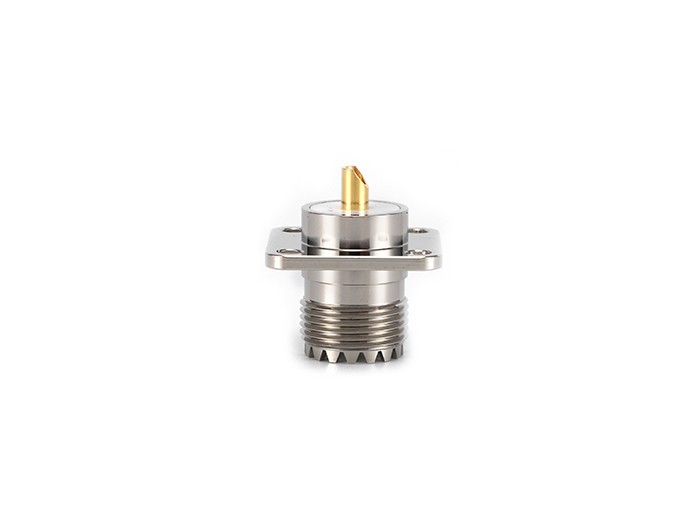

UHF Female Flange Connector for Terminal
Model: UHF-KFD
Product Introduction
Series UHF is connectors with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground control apparatus.
Detailed Information
UHF Female Flange Connector for Terminal
Teruilai P/N : UHF-KFD Datesheet
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | 5000MΩ | |
| Center Contact Resistance | 5MΩ | |
| Outer Contact Resistance | 5MΩ | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Silver plated |
| Contact Pin | Bronze | Gold |
| Insulators | Teflon | |
