RF Coaxial Connectors · UHF

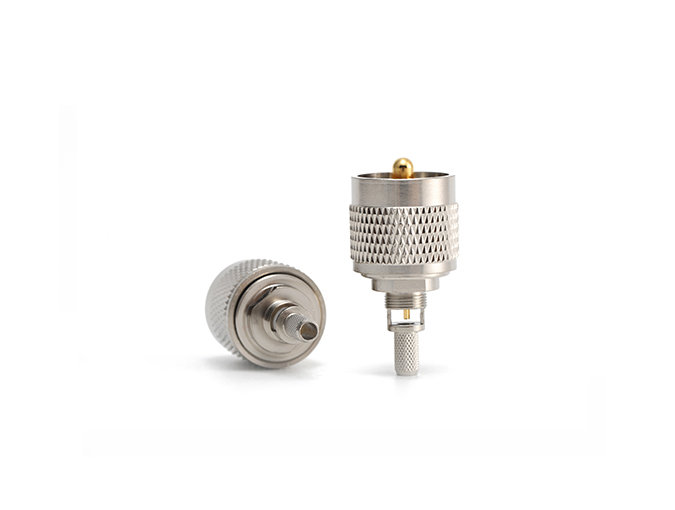

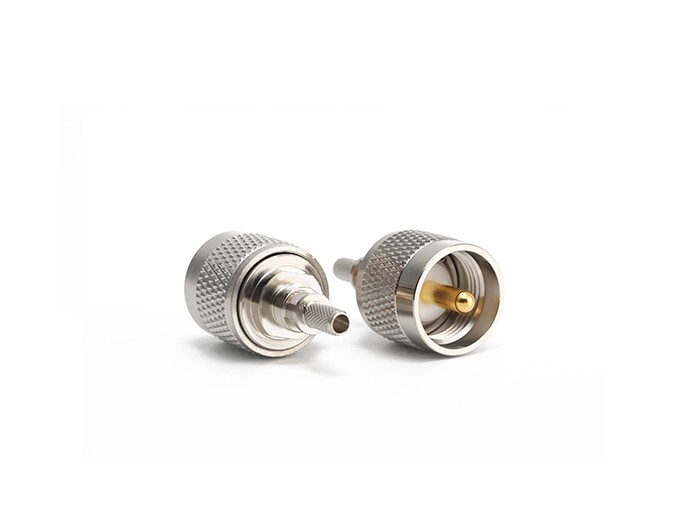

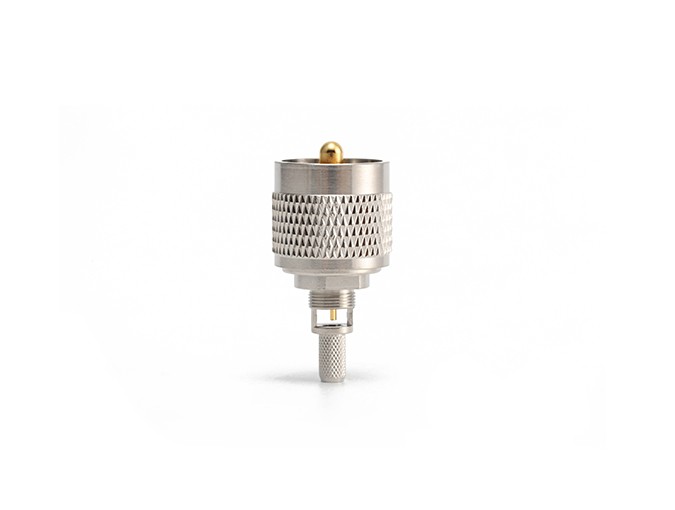

UHF Male Straight for RG58 Cable
Model: UHF-J5YA
Product Introduction
Series UHF is connectors with screw coupling mechanism.The connector is applicable from DC up to 300MHZ in the field of communication systems, CATV ,mobile radio equipment and ground control apparatus.
Detailed Information
UHF Male Straight for RG58 Cable
Teruilai P/N : UHF-J5YA Datesheet
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency range | 0-300MHZ | |
| Insulation resistance | 5000MΩ | |
| Center Contact Resistance | 1.0MΩ | |
| Outer Contact Resistance | 0.2MΩ | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| Rohs compliant | Yes | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel |
| Contact Pin | Brass | Gold |
| Coupling nut | Brass | Nickel |
| Crimp ferrules | Copper | Nickel |
| Insulators | Teflon | |
